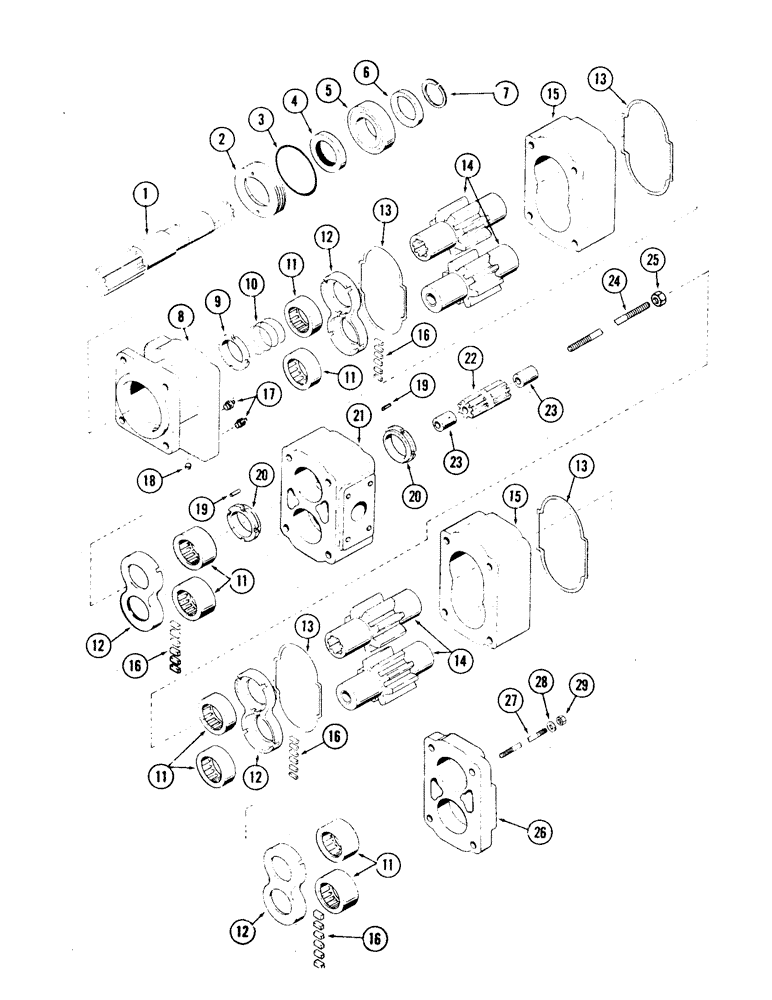

Запчасти Case 35 (178) - TRACK DRIVE MOTOR, (USED ON UNITS WITH PIN 6266131 THRU 6266234) (35) - HYDRAULIC SYSTEMS

S511234

MOTOR

track drive

2шт.

1

D31958

SHAFT

1шт.

2

S70415

RETAINER

RING, retaining

1шт.

3

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

4

S70416

OIL SEAL

1шт.

5

S63513

TAPERED BEARING

BEARING, roller

1шт.

6

D31950

SPACER

1шт.

7

D31951

SNAP RING

RING, retaining

1шт.

8

S109027

COVER, shaft end

1шт.

9

D31952

BUSHING

shaft

1шт.

10

D31953

VALVE SPRING

SPRING

1шт.

11

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

8шт.

12

D31955

PLATE

thrust

4шт.

13

D41391

O-RING

GASKET

4шт.

14

S72565

GEAR-SET

GEAR SET - (Matched set)

2шт.

15

S75508

HOUSING

gear

2шт.

16

D35673

SEAL

pocket

24шт.

17

S61749

VALVE

CHECK ASSEMBLY

2шт.

18

S95139

PLUG

1шт.

19

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

2шт.

20

S63528

BUSHING

shaft

2шт.

21

S109022

CARRIER

bearing

1шт.

22

S63530

SHAFT

1шт.

23

S76245

SPACER

2шт.

24

S76268

STUD

1шт.

25

S63533

LOCK NUT

NUT, lock

1шт.

26

A24842

COVER, port end

1шт.

27

S76269

STUD

4шт.

28

D31957

WASHER

4шт.

29

86625068

NUT,5/8"-11, G8

- 5/8" NC

4шт.
