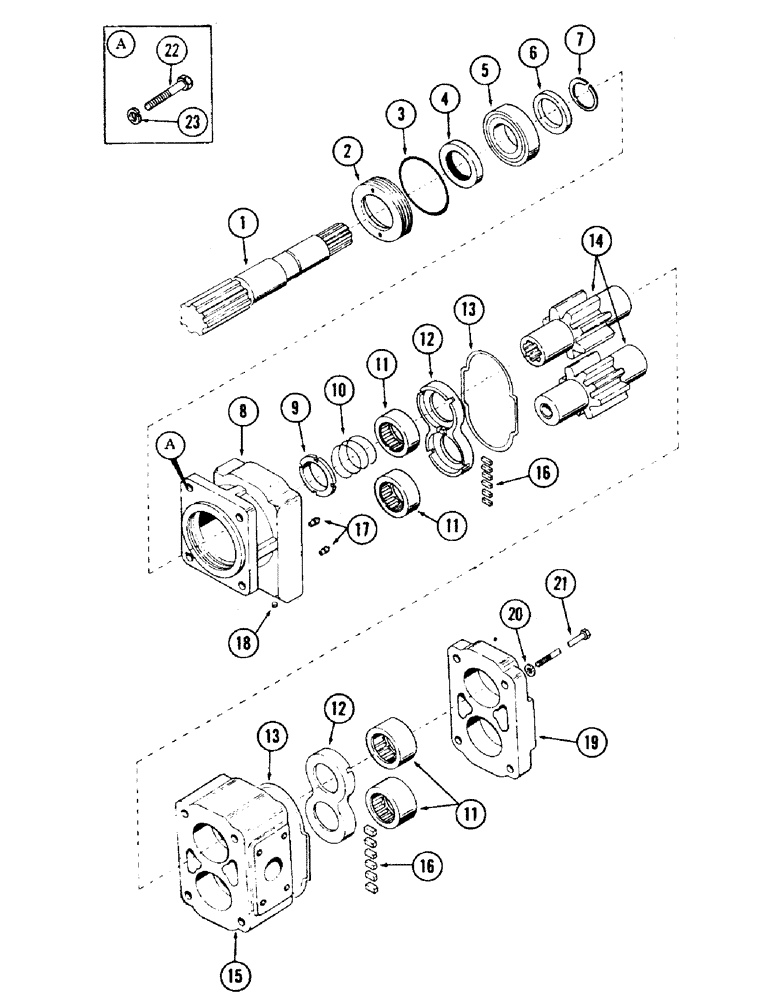

Запчасти Case 35 (176) - SWING MOTOR (35) - HYDRAULIC SYSTEMS

S511681

MOTOR, swing

1шт.

1

D31958

SHAFT

1шт.

2

S70415

RETAINER

RING, retaining

1шт.

3

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

4

S70416

OIL SEAL

1шт.

5

S63513

TAPERED BEARING

BEARING, roller

1шт.

6

S63524

SPACER

1шт.

7

D31951

SNAP RING

RING, retaining

1шт.

8

S109027

COVER, shaft end

1шт.

9

D31952

BUSHING

shaft

1шт.

10

D31953

VALVE SPRING

SPRING

1шт.

11

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

4шт.

12

D31955

PLATE

thrust

2шт.

13

D41391

O-RING

GASKET

2шт.

14

S67298

GEAR-SET

GEAR SET - (Matched set)

1шт.

15

S113574

HOUSING, gear

1шт.

16

D35673

SEAL

pocket

12шт.

17

S61749

VALVE

CHECK ASSEMBLY

2шт.

18

S95139

PLUG

1шт.

19

A24842

COVER, port end

1шт.

20

D31957

WASHER

4шт.

21

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8" NC x 5-3/4" gr 5

4шт.

22

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
