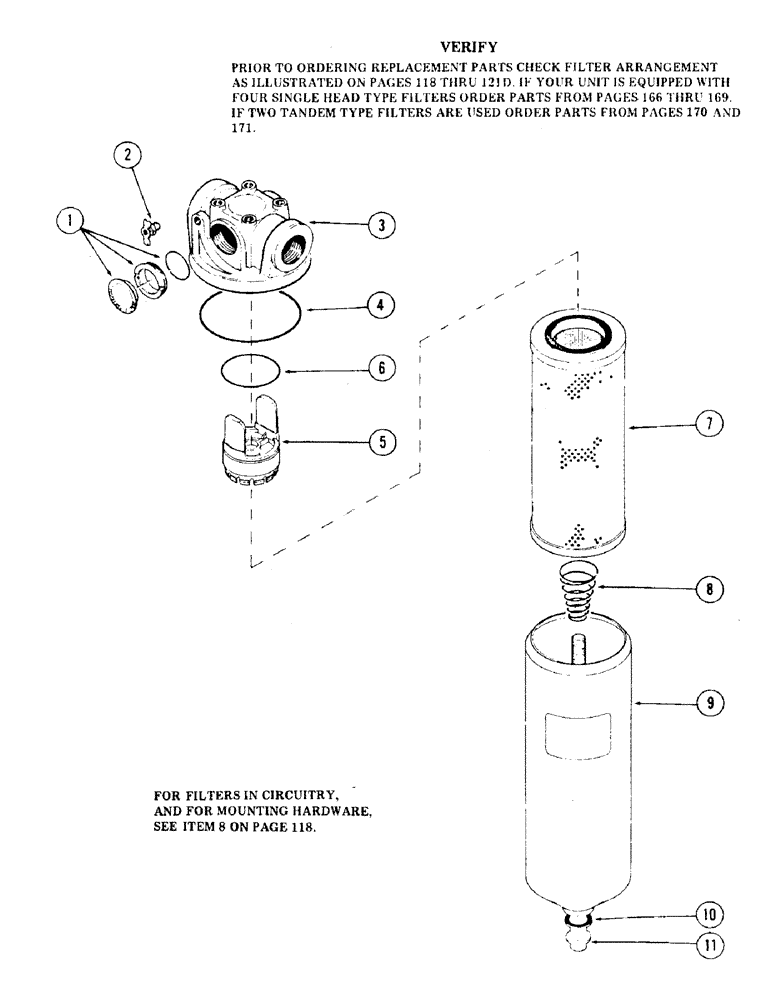

Запчасти Case 35 (168) - HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

S510502

FILTER

hydraulic oil

2шт.

1

S106532

WINDOW ASSEMBLY

1шт.

2

S106535

PLUG

drain

1шт.

3

S108482

HEAD

1шт.

4

S107789

O-RING

"O" RING

1шт.

5

S108483

FILTER

INDICATOR ASSEMBLY

1шт.

6

S107967

O-RING,2.109" ID x 0.139" Width

"O" RING

1шт.

7

S109470

FILTER, ELEMENT

ELEMENT - (10 micron)

1шт.

8

S104930

SPRING

1шт.

9

S107792

HOUSING

1шт.

10

S107793

SEALING WASHER

GASKET, washer

1шт.

11

S109471

BOLT

1шт.

12

S109472

KIT, window - (Includes lens and "O" ring)

1шт.

13

S108971

ELEMENT

flushing only - (Not illustrated)

1шт.
