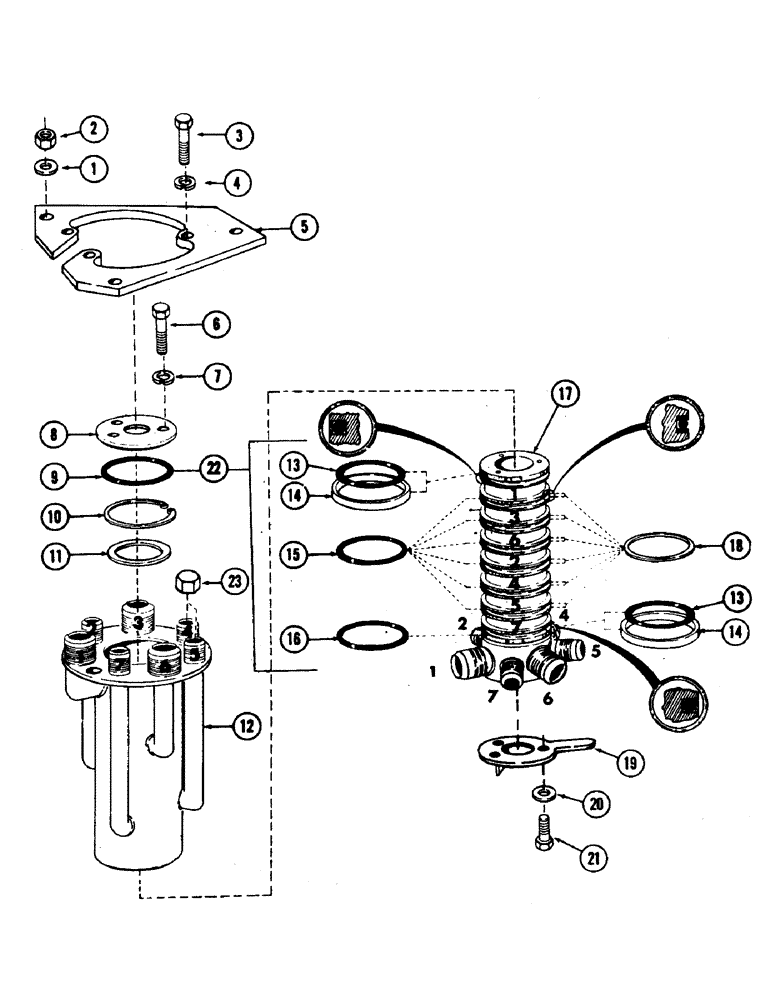

Запчасти Case 35 (164) - 7-PORT SWIVEL AND RELATED PARTS (35) - HYDRAULIC SYSTEMS

1

195-104

WASHER,3/8"

plain - 7/16"

3шт.

2

131-52

NUT,3/8"-16, GC

NUT, 3/8" NC

3шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

S204101

PLATE

upper - swivel mounting

1шт.

S57973

LINK

SWIVEL, 7-port hydraulic

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

S203821

CAP

bearing

1шт.

9

S76241

O-RING

"O" RING

1шт.

10

S15194

SNAP RING

RING, retaining

1шт.

11

S203832

WASHER

bearing

1шт.

12

S57975

ASSEMBLY

HOUSING, swivel

1шт.

13

S80704

RING

"O" RING

2шт.

14

S80705

SEAL

slipper

2шт.

15

S6332

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 3.984" ID x 4.250" OD

6шт.

16

S76240

O-RING

"O" RING

1шт.

17

S57974

ASSEMBLY

SHAFT, swivel

1шт.

18

S76928

WASHER

back up

18шт.

19

S237399

LARGE PLATE

PLATE, lower - swivel mounting - (Supersedes S209353)

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

22

S210212

SEAL KIT

KIT, seal - (Consists of reference numbers 9 and 13 thru 16 and 18 of item 18)

1шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

- (3/4" tube) - 1-1/16" - 12 female - 37 degrees flared - (Used on ports 4 and 5 on units without optional leveler)

2шт.
