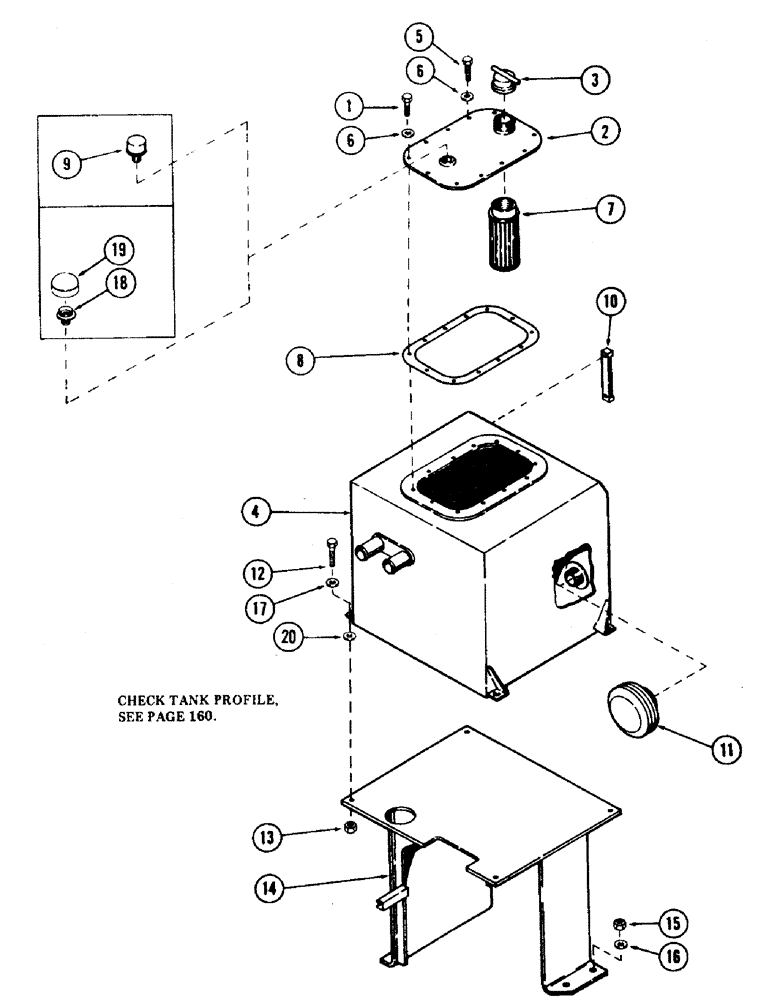

Запчасти Case 35 (162) - HYDRAULIC OIL TANK AND RELATED PARTS, (USED WITH TANK WITH SQUARE CORNERS) (35) - HYDRAULIC SYSTEMS

S613279

TANK

ASSEMBLY, hydraulic oil - (See note on Fig. 162)

1шт.

1

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

2

S236359

COVER

1шт.

3

S230688

CAP

1шт.

4

S612899

TANK

hydraulic oil

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

6

195-102

WASHER,1/4"

flat - 5/16"

12шт.

7

S107379

FILTER, ENGINE OIL

STRAINER

1шт.

8

S230621

GASKET

cover

1шт.

9

S91864

BREATHER

- (Supersedes S109723) - (Used on units with PIN 6266265 and below)

1шт.

10

S107269

GAUGE

oil level

1шт.

11

S107145

DIFFUSER

2шт.

12

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

13

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

14

S510155

BRACKET - (Used on units with PIN 6266219 and below)

1шт.

15

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC - (Used with PIN 6266219 and below)

4шт.

16

S95569

WASHER

flat - 1/2" - (Used on units with PIN 6266219 and below)

4шт.

17

195-103

WASHER,5/16"

flat - 3/8"

4шт.

18

S115101

ADAPTER

filter air - (Used on units with PIN 6266266 and after)

1шт.

19

S115102

AIR CLEANER

FILTER, air - (Used on units with PIN 6266266 and after)

1шт.

20

195-103

WASHER,5/16"

flat - 3/8" - (Used as shims)

1шт.
