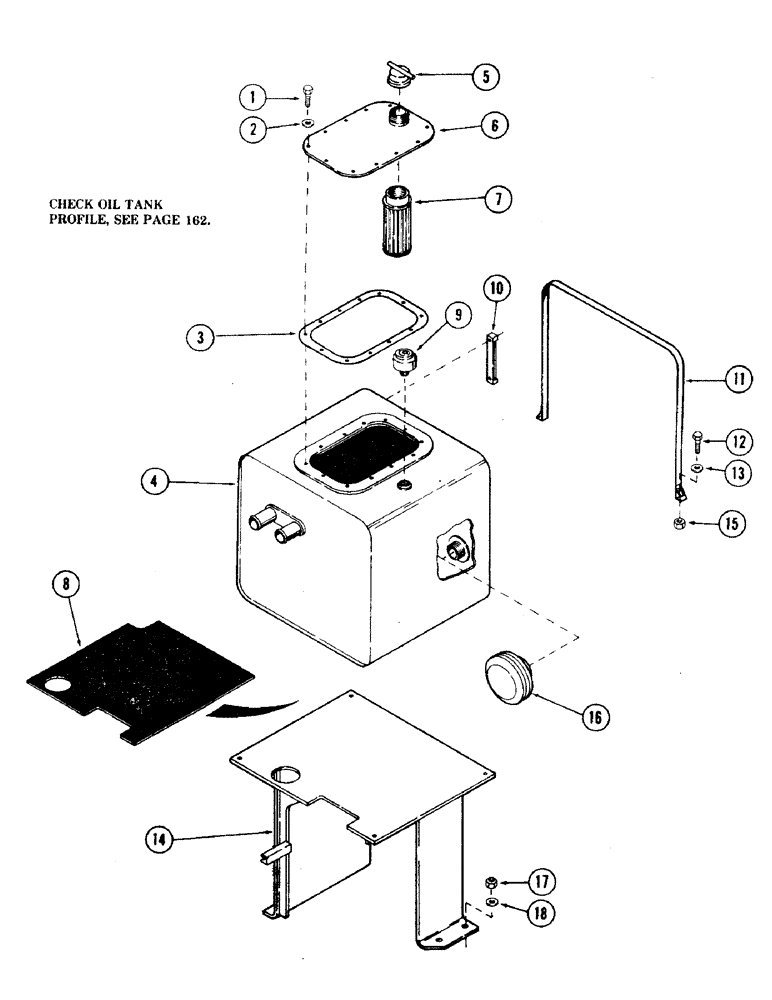

Запчасти Case 35 (160) - HYDRAULIC OIL TANK AND RELATED PARTS, (USED WITH OIL TANK WITH ROUND CORNERS) (35) - HYDRAULIC SYSTEMS

NSS

NOT SOLD SEPARAT

TANK ASSEMBLY, hydraulic oil - (See note below)

1шт.

1

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Cover mounting

12шт.

2

195-102

WASHER,1/4"

flat - 5/16"

12шт.

3

S230621

GASKET

cover

1шт.

4

TANK, hydraulic oil - (Order kit S613740)

1шт.

5

S230688

CAP

1шт.

6

S230622

COVER

1шт.

7

S107379

FILTER, ENGINE OIL

STRAINER - (100 mesh)

1шт.

8

S510158

PAD

1шт.

9

S235205

BREATHER

1шт.

10

S107269

GAUGE

GAGE, oil level

1шт.

11

S107404

STRAP, mounting

2шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- 3/8" NC x 1-1/2" gr 5

4шт.

13

S108015

SPACER

4шт.

14

S510155

BRACKET, oil tank mounting

1шт.

15

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

16

S107145

DIFFUSER

2шт.

17

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

18

S95569

WASHER

flat - 1/2"

4шт.

19

S613740

KIT

hydraulic oil tank - (Includes all items necessary to convert to square cornered oil tank)

1шт.

S613279

TANK

RESERVOIR, hydraulic oil

1шт.

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

8шт.

S114935

HOSE

low pressure - (Bulk) - 1-1/2" ID x 12" long

12"шт.

A14157

FLANGE

CLAMP, half

4шт.

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.137" OD

2шт.

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

195-25

WASHER,3/8"

lock - 1/2"

8шт.

S236134

2шт.

S114935

HOSE

low pressure - (Bulk) - 1-1/2" ID x 19" long

19"шт.
