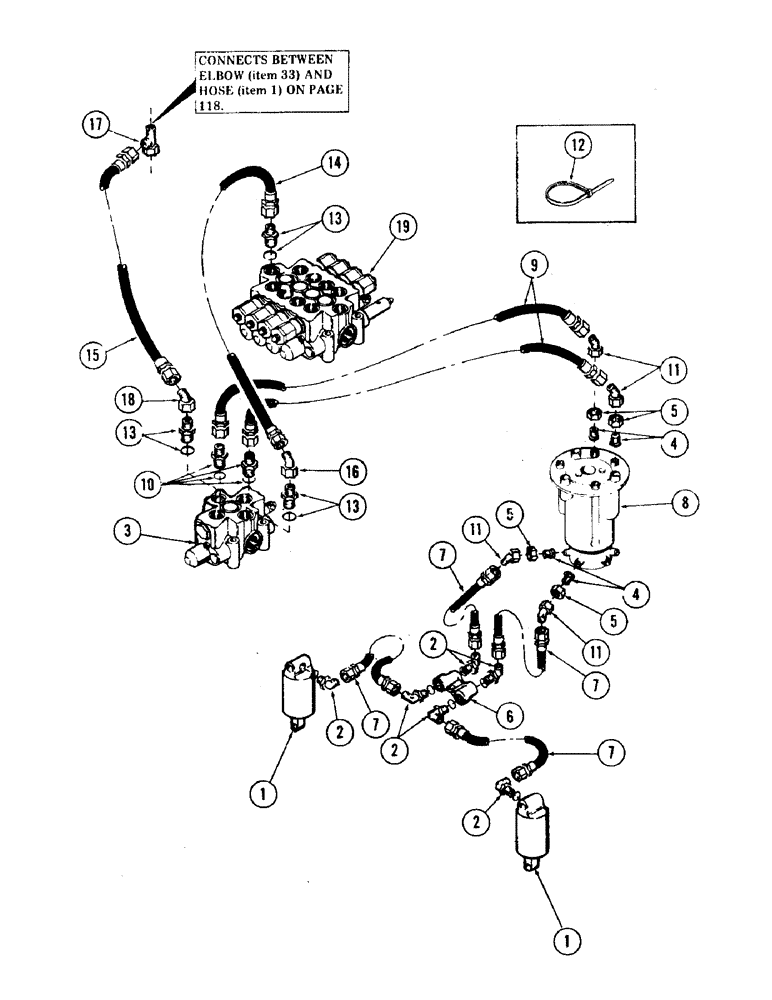

Запчасти Case 35 (146) - LEVELER TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CYLINDER, leveler - (For breakdown, see Fig. 154)

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - female - 37 degrees flared

6шт.

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING

6шт.

3

REF

INSTRUCTION

VALVE, 1-spool main control - (For breakdown, see Fig. 192)

1шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducing - (3/4" to 1/2" tube reduction) - 3/4" - 16 male - 37 degrees flared

4шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - (3/4" tube) - 1-1/16" - 12 female

4шт.

6

REF

INSTRUCTION

VALVE, check - (For breakdown, see Fig. 188(1))

1шт.

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5 (Valve mounting)

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

195-102

WASHER,1/4"

flat - 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

7

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

4шт.

8

REF

INSTRUCTION

SWIVEL, 7-port - (For breakdown, see Fig. 164)

1шт.

9

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

10

S111648

CONNECTOR, ELEC

CONNECTOR - (1/2" tube) - 1-5/16" - 12 male x 3/4" - 16 male - 37 degrees flared

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

2шт.

11

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 degrees - (1/2" tube) - 16 male x 3/4" - 16 female - 37 degrees flared

4шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

13

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

3шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

14

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

1шт.

15

S401530

HOSE ASSY.

HOSE, high pressure - 1" ID x 20" long - (With 1-5/16" - 12 female pressed on couplings)

1шт.

16

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

1шт.

17

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

1шт.

18

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

1шт.

19

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see page 194)

1шт.
