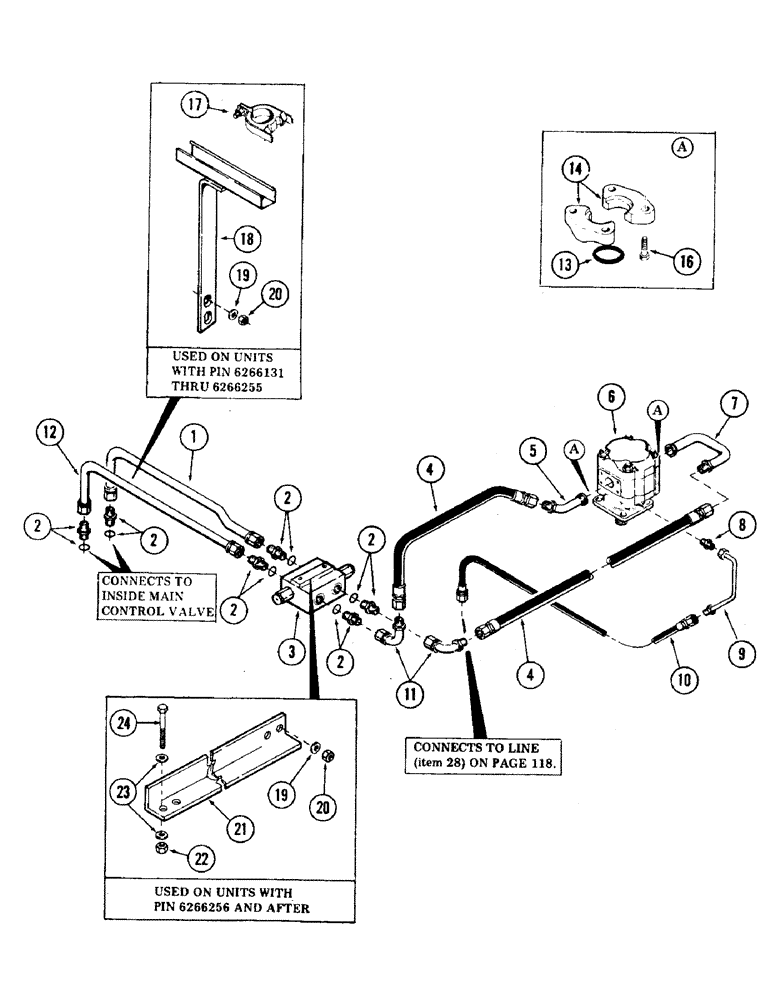

Запчасти Case 35 (144) - SWING MOTOR TUBING (35) - HYDRAULIC SYSTEMS

1

S234347

TUBE, hydraulic 1.25" OD

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

6шт.

3

REF

INSTRUCTION

VALVE, inline crossover relief - (For breakdown, see Fig. 188)

1шт.

4

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

5

S234062

TUBE ASSY.,1.25" OD x 7.5, 2.36" L

TUBE, hydraulic

1шт.

6

REF

INSTRUCTION

MOTOR, swing - (For breakdown, see Fig. 176)

1шт.

7

S233854

TUBE, hydraulic 1.25" OD x 5.06, 6.06" L

1шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

1шт.

9

S233843

TUBE, hydraulic 0.375" OD x 4.55, 7.55" L

1шт.

10

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

1шт.

11

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared - (Supersedes S234072)

2шт.

12

S234071

TUBE, hydraulic 1.25" OD x 7.68, 26.06" L

1шт.

13

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD

2шт.

14

A14157

FLANGE

split

4шт.

15

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

16

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

8шт.

17

S93266

CLAMP

2шт.

18

S234355

BRACKET, clamp mounting

1шт.

19

195-530

WASHER,7/16"

flat - 1/2"

2шт.

20

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

21

S513951

ANGLE

1шт.

22

131-462

NUT,5/16"-18

NUT - 5/16" NC

2шт.

23

195-521

WASHER,5/16", SAE

flat - 3/8"

4шт.
