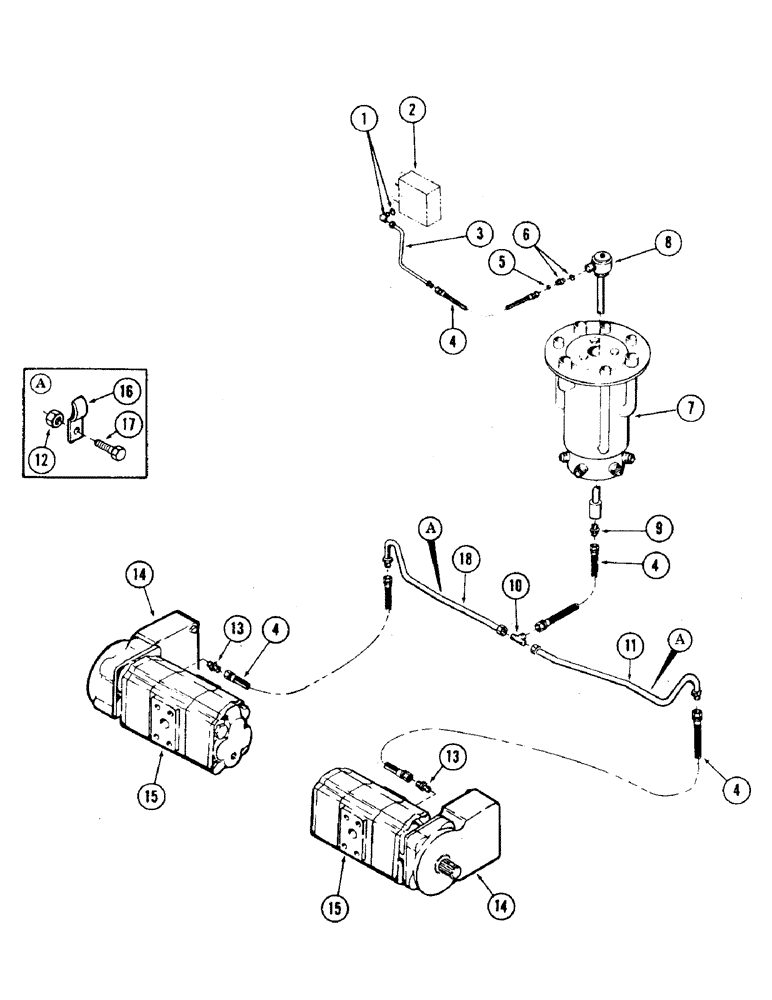

Запчасти Case 35 (142) - DRIVE BRAKE TUBING (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable (3/8" tube) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

1шт.

2

REF

INSTRUCTION

VALVE, solenoid monoblock - (For breakdown, see Fig. 182 or 184)

1шт.

3

S231454

TUBE, hydraulic 0.375" OD x 6.36, 6.58" L

1шт.

4

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

4шт.

5

S89669

VALVE

RESTRICTOR, flow

1шт.

6

S95069

FITTING

CONNECTOR - (3/8" tube) - 7/16" - 20 male x 9/16" - 18 male - 37 degrees flared

1шт.

S6057

O-RING

"O" RING - .351" ID x .495" OD

1шт.

7

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Fig. 164)

1шт.

8

REF

INSTRUCTION

SWIVEL, service - (For breakdown, see page 94)

1шт.

9

S60835

ADAPTER

- (3/8" tube) - 9/16" - 18 male x 1/4" NPT male 37 degrees flared

1шт.

10

218-593

TEE,9/16"-18, 37 Degree

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

11

S513199

TUBE ASSY.,0.375" OD

TUBE, hydraulic

2шт.

12

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

13

218-749

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree

UNION

2шт.

14

REF

INSTRUCTION

BRAKE, track - (For breakdown, see Fig. 18)

2шт.

15

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Fig. 178)

2шт.

16

S94926

CLAMP

tube

2шт.

17

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

18

S513441

TUBE, hydraulic 0.375" OD

1шт.
