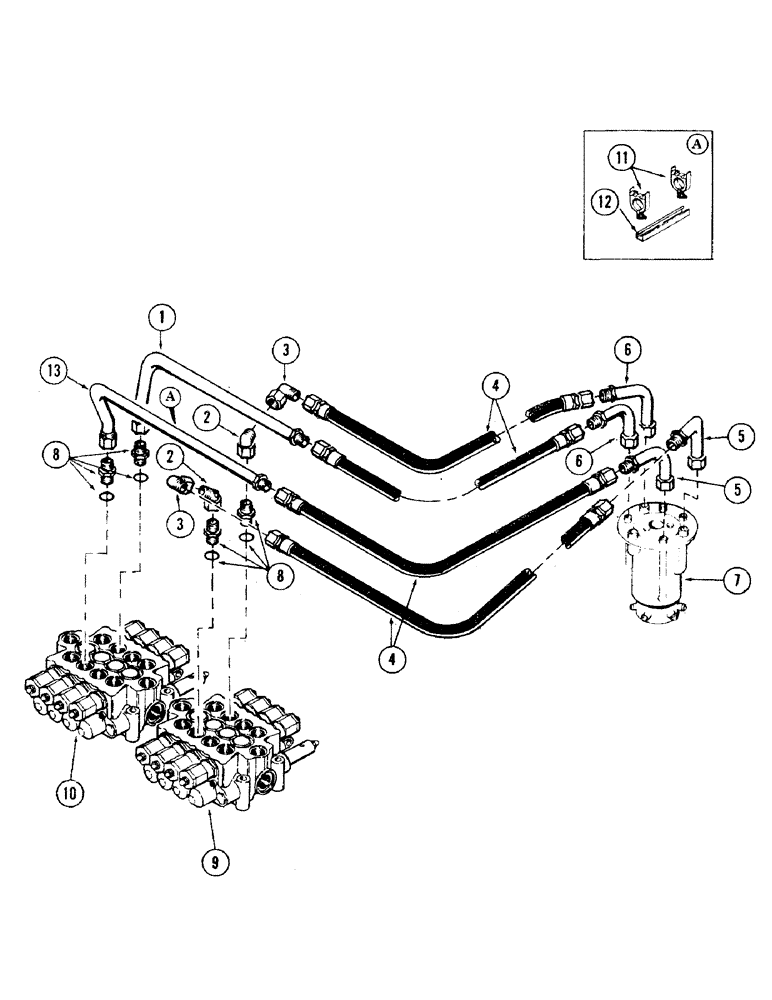

Запчасти Case 35 (138) - TRACK DRIVE MOTOR TUBING FROM VALVE TO SWIVEL (35) - HYDRAULIC SYSTEMS

1

S512277

TUBE, hydraulic 1" OD x 20.06" L

1шт.

2

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

4

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

5

S237057

LINE,1" OD x 4.35, 4.3" L

TUBE, hydraulic - (Supersedes S208825)

2шт.

6

S208826

TUBE,1" OD x 6.12, 4.35" L

hydraulic

2шт.

7

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Fig. 142)

1шт.

8

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

4шт.

9

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (Inside) - (For breakdown, see Fig. 198)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (Outside) - (For breakdown, see Figs. 194 or 196)

1шт.

11

S91602

CLAMP

2шт.

12

S98782

CHANNEL

clamp mounting

1шт.

13

S512276

TUBE, hydraulic 1" OD

1шт.
