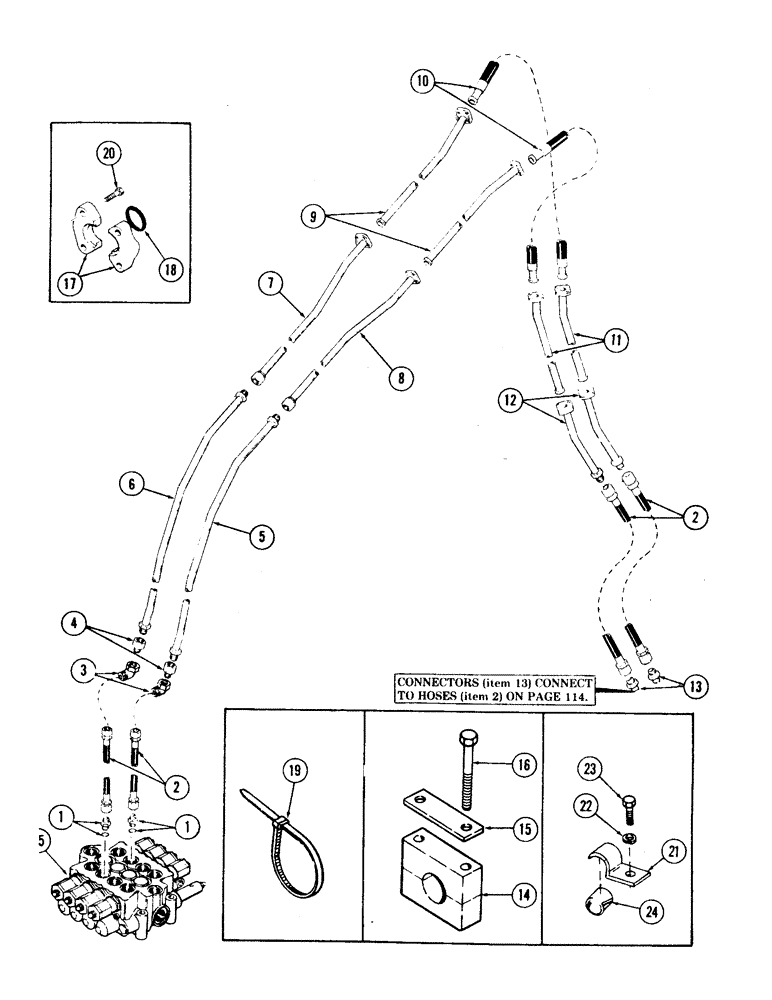

Запчасти Case 35 (136) - AUXILIARY TUBING, (USED ON UNITS WITH "Y" BOOM) (35) - HYDRAULIC SYSTEMS

1

S111648

CONNECTOR, ELEC

CONNECTOR, 1/2" tube - 1-5/16" - 12 male x 3/4" 16 male - 37 degrees flared

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

2

S11241

HOSE

high pressure - 3/8" ID x 106" long - 3/4" - 16 female x 3/4" - 16 female ends

4шт.

3

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degrees swivel - 1/2" tube - 3/4" - 16 female x 3/4" - 16 male - 37 degrees flared

2шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

- 3/4" tube - 1-1/16" - 12 female x 3/4" - 16 male - 37 degrees flared

2шт.

5

S613291

TUBE,1" OD

hydraulic

1шт.

6

S613292

LINE,1" OD

TUBE, hydraulic

1шт.

7

S613294

LINE,1" OD

TUBE, hydraulic

1шт.

8

S613293

TUBE,1" OD

hydraulic

1шт.

9

S236159

TUBE, hydraulic 1" OD

2шт.

10

S235670

HOSE

high pressure

2шт.

11

S235673

TUBE,1" OD

hydraulic

2шт.

12

S235669

TUBE,0.5" OD

hydraulic

2шт.

13

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 1/2" tube - 3/4" - 16 male - 37 degrees flared x 3/4" - 16 male - 37 degrees flared

2шт.

14

S112616

CLAMP

1шт.

15

S112618

PLATE

CLAMP

1шт.

16

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

17

A12306

FLANGE

split half

1шт.

18

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O" RING

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" NC x 1-1/4" gr 5

1шт.

21

S116280

CLAMP

1шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

23

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

24

S75792

RING

compression

1шт.

25

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see Fig. 194)

1шт.
