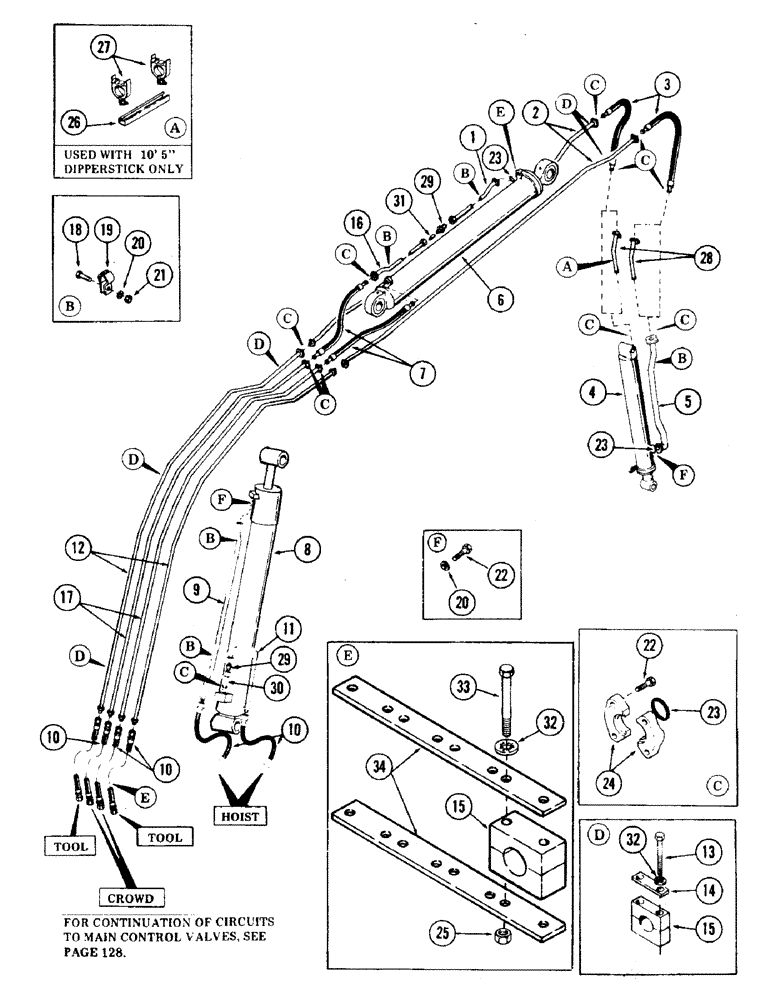

Запчасти Case 35 (130) - "E" BOOM AND DIPPERSTICK TUBING (35) - HYDRAULIC SYSTEMS

1

S233816

TUBE,1.25" OD x 26.33, 0.32" L

hydraulic

1шт.

2

S611734

TUBE,1.25" OD x 124.95, 2.98" L

hydraulic

1шт.

3

S229987

HOSE ASSY.

HOSE, high pressure

2шт.

4

REF

INSTRUCTION

CYLINDER, tool - (For breakdown, see Fig. 154)

1шт.

5

S235038

TUBE ASSY.,1.25" OD x 42.55, 0.92" L

TUBE, hydraulic

1шт.

6

REF

INSTRUCTION

CYLINDER, crowd - (For breakdown, see Fig. 148)

1шт.

7

S229986

HOSE ASSY.

HOSE, high pressure

2шт.

8

REF

INSTRUCTION

CYLINDER, hoist - (For breakdown, see Fig. 152)

1шт.

9

S613863

TUBE ASSY.,1.25" OD

TUBE, hydraulic

1шт.

10

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

6шт.

11

S513215

TUBE,1.25" OD

hydraulic

1шт.

12

S611733

TUBE ASSY.,1.25" OD x 98.86, 54.66" L

TUBE, hydraulic

2шт.

13

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

14

S112618

PLATE

1шт.

15

S112617

CLAMP

1шт.

16

S233817

TUBE,1.25" OD x 26.06, 0.56" L

hydraulic

1шт.

17

S611732

TUBE ASSY.,1.25" OD

TUBE, hydraulic

2шт.

18

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

19

S106606

CLAMP

1шт.

20

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

129-104

NUT,7/16"-14, G5

1шт.

22

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

23

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.3484" ID x 1.750" OD

1шт.

24

A12301

CLAMP,Half

CLAMP, half flange

1шт.

25

131-462

NUT,5/16"-18

NUT - 5/16" NC

8шт.

26

S105626

CHANNEL

1шт.

27

S93266

CLAMP

2шт.

28

S235041

TUBE ASSY.,1.25" OD x 15.44, 0.58" L

TUBE, hydraulic - (Used with 10'5" dipperstick only)

2шт.

29

S7984

FITTING

CONNECTOR - (1-1/4" tube) - 1-5/16" - 12 male x 1-5/8" - 12 male - 37 degrees flared

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

30

S233818

TUBE ASSY.,1.25" OD x 4.69" L

TUBE, hydraulic

1шт.

31

S112010

VALVE, CHECK

REGULATOR, flow

1шт.

32

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

33

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

8шт.

34

S237593

PLATE

2шт.
