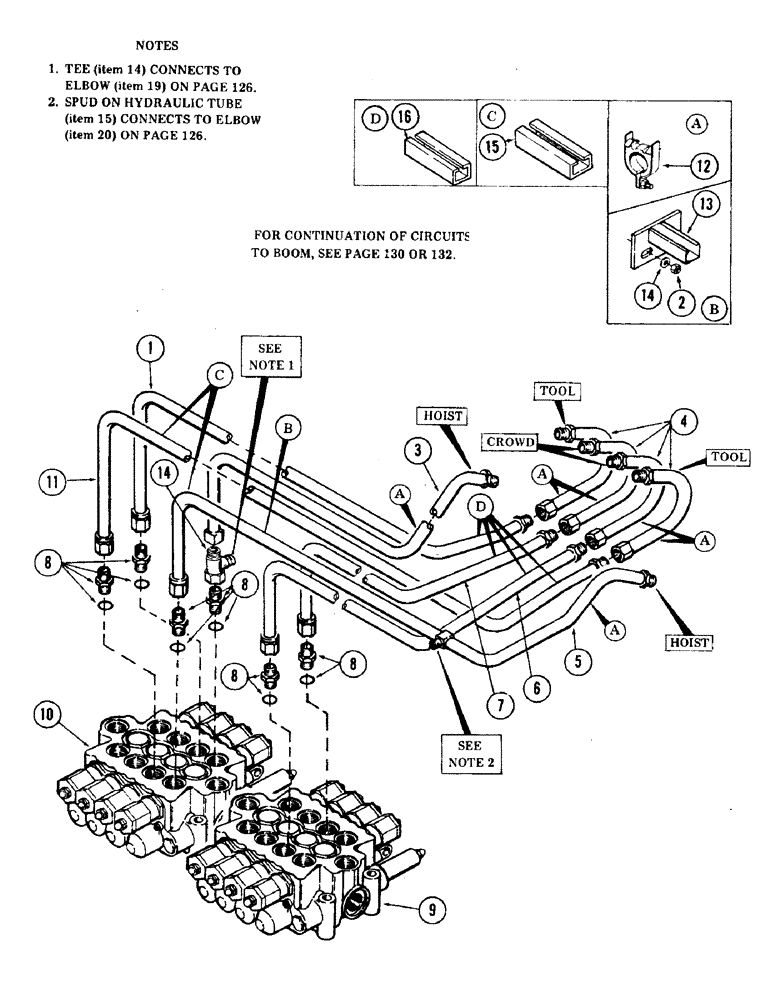

Запчасти Case 35 (128) - CROWD, HOIST AND TOOL TUBING FROM VALVE TO BOOM (35) - HYDRAULIC SYSTEMS

1

S511911

TUBE ASSY.,1.25" OD

TUBE, hydraulic

1шт.

2

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

3

S511910

TUBE ASSY.

TUBE, hydraulic

1шт.

4

S234334

TUBE ASSY.

TUBE, hydraulic

4шт.

5

S512185

TUBE, hydraulic 1.25" OD

1шт.

6

S511908

TUBE,1.25" OD

hydraulic

1шт.

7

S511909

TUBE ASSY.,1.25" OD

TUBE, hydraulic

1шт.

8

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

6шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

6шт.

9

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Fig. 198)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figs. 194 or 196)

1шт.

11

S512184

TUBE, hydraulic 1.25" OD

1шт.

12

S93266

CLAMP

2шт.

13

S234354

BRACKET

clamp mounting

2шт.

14

195-530

WASHER,7/16"

flat - 1/2"

4шт.

15

S98413

SUPPORT

CHANNEL

1шт.

16

S98782

CHANNEL

1шт.
