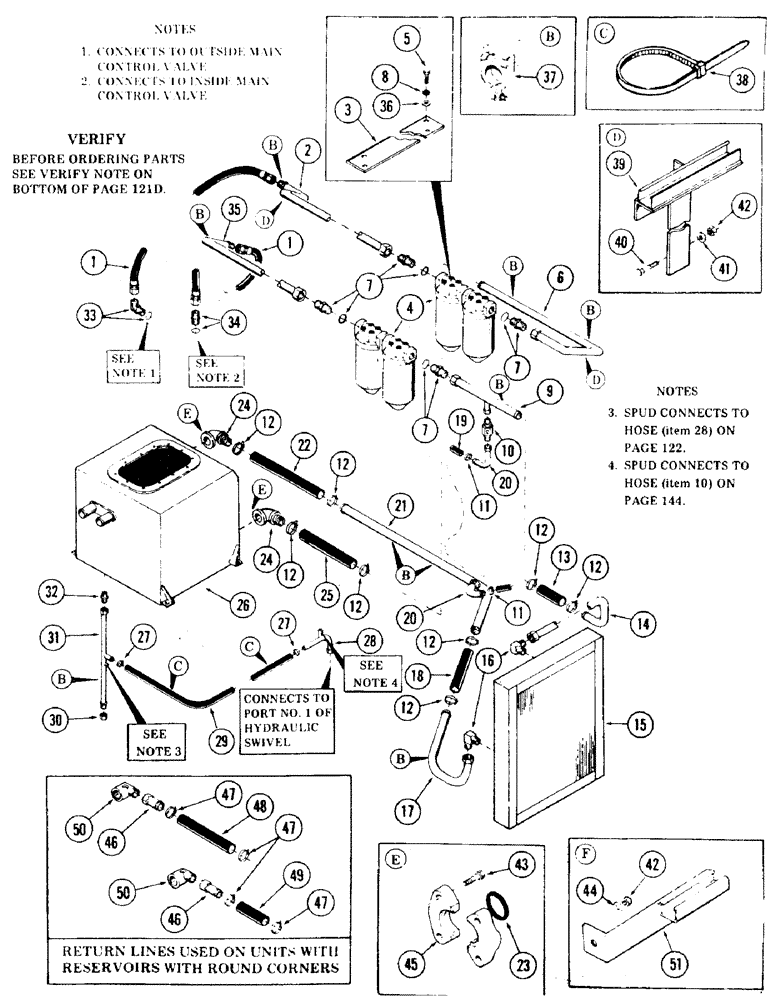

Запчасти Case 35 (121A) - MAIN VALVES TO FILTERS TO OIL TANK AND COOLER TUBING (35) - HYDRAULIC SYSTEMS

1

S8628

HOSE

- high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

2

S238225

TUBE, hydraulic

1шт.

3

S238226

PLATE

BRACKET, filter mounting

1шт.

4

REF

INSTRUCTION

FILTER - hydraulic oil - (For breakdown, see Fig. 170)

2шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

S234975

TUBE - hydraulic 1.5" OD x 34.06, 10.56" L

1шт.

7

S7978

ROD, CONNECTING

CONNECTOR - (1-1/2" tube) - 1-7/8" - 12 male x 1-7/8" - 12 male - 37 degrees flared

4шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O" RING - 1.270" ID x 1.956" OD

4шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

9

S234838

TUBE - hydraulic

1шт.

10

S105386

VALVE

- check

1шт.

11

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

12

S85429

CLAMP

- hose

8шт.

13

S114935

HOSE

- low pressure - (Bulk) - 1 piece - 1-1/2" ID x 8" long

1шт.

14

S235288

TUBE - hydraulic 1.5" OD

1шт.

15

S609190

COOLER - oil

1шт.

16

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degrees - 1-5/8" - 12 male x 1" NPT male - 37 degrees flared

2шт.

17

S235289

TUBE - hydraulic 1.5" OD

1шт.

18

S114935

HOSE

- low pressure - (Bulk) - 1 piece - 1-1/2" ID x 12" long

1шт.

19

S202582

LINE

HOSE - low pressure - (Bulk) - 1 piece - 1-1/4" ID x 9" long

1шт.

20

S215412

TUBE,1.25" OD x 3" L

- hydraulic

1шт.

21

S512420

LINE

TUBE - hydraulic

1шт.

22

S114935

HOSE

- low pressure - (Bulk) - 1 piece - 1-1/2" ID x 15" long

1шт.

23

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING

2шт.

24

NLS

NO LONGER SERVICED

90 degrees

2шт.

25

S114935

HOSE

- low pressure - (Bulk) - 1 piece - 1-1/2" ID x 8" long

1шт.

26

REF

INSTRUCTION

TANK - hydraulic oil - (For breakdown, see Figs. 160 and 162)

1шт.

27

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

2шт.

28

S229693

TUBE,1" OD x 3, 3.75" L

- hydraulic

1шт.

29

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 64" long 1.00" ID Bulk, SAE 100R3

1шт.

30

218-760

CAP,37 Degree, 1 7/8"-12

- (1-1/2" tube) - 1-7/8" - 12 female - 37 degrees flared

1шт.

31

S233846

TUBE - hydraulic

1шт.

32

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - (1-1/2" tube) - 1-7/8" - 12 male x 1-1/2" NPT male - 37 degrees flared

1шт.

33

S7943

ELBOW

- 90 degrees adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

1шт.

34

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

35

S238224

TUBE - hydraulic

1шт.

36

195-103

WASHER,5/16"

- flat 3/8"

4шт.

37

S98324

CLAMP

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

39

S234786

BRACKET

- filter mounting

2шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- 1/2" x 1-1/4" NC (Grade 5)

4шт.

41

S95569

WASHER

- flat 1/2"

4шт.

42

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC

5шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

VOLT - (Nylok) - 1/2" x 1-1/4" NC (Grade 5)

8шт.

44

195-530

WASHER,7/16"

- flat 1/2"

1шт.

45

A14157

FLANGE

CLAMP - half

4шт.

46

S213720

TUBE,1.5" OD x 4" L

- hydraulic

2шт.

47

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- hose

8шт.

48

114-935

HOSE - low pressure - (Bulk) - 1-1/25" ID x 15" long

1шт.

49

S114935

HOSE

- low pressure - (Bulk) - 1-1/2" ID x 7" long

1шт.

50

S7758

ELBOW - 90 degrees - (1 1/2" tube) - 1-7/8" - 12 male x 1-1/2" NPT female - 37 degrees flared

2шт.

51

S235039

BRACKET

- tube clamp

1шт.

52

195-530

WASHER,7/16"

- flat 1/2"

1шт.
