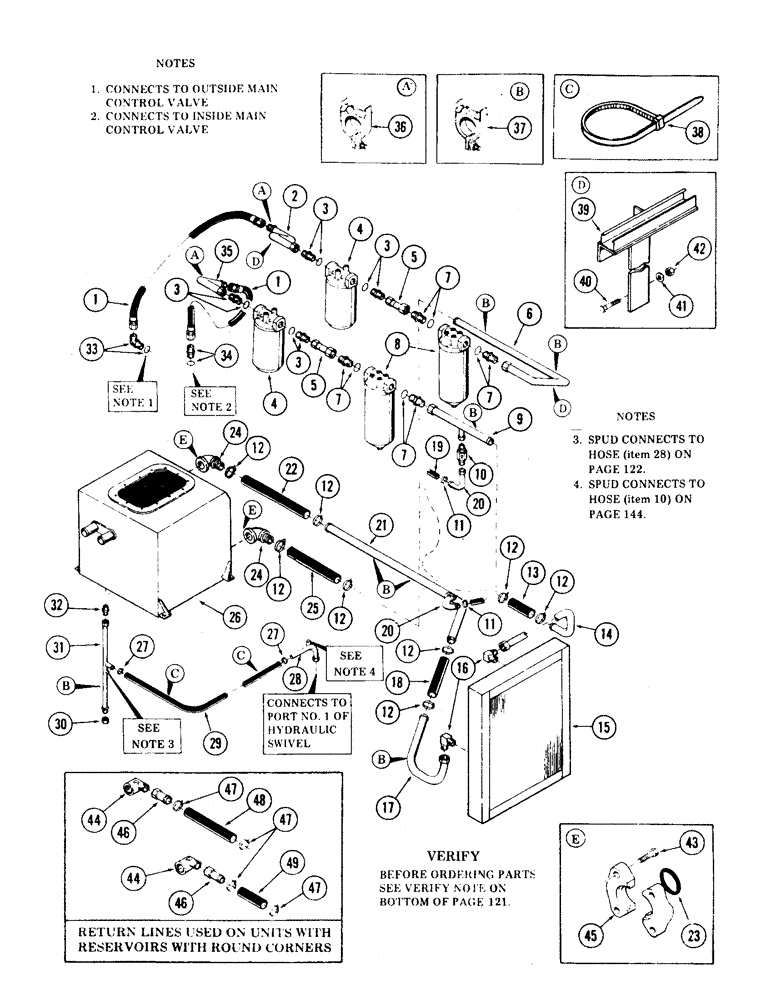

Запчасти Case 35 (118) - MAIN VALVE TO FILTERS TO OIL TANK AND COOLER TUBING (35) - HYDRAULIC SYSTEMS

1

S8628

HOSE

high pressure - 1" ID x 36" long - (Used with 1-5/16" - 12 female pressed on couplings)

2шт.

2

S233934

TUBE, hydraulic 1.25" OD

1шт.

3

S7976

CONNECTOR, ELEC

CONNECTOR - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared

4шт.

S6073

RING

"O" RING

4шт.

4

REF

INSTRUCTION

FILTER, hydraulic oil - (For breakdown, see Fig. 166)

2шт.

5

S229135

TUBE, hydraulic

2шт.

6

S234975

TUBE, hydraulic 1.5" OD x 34.06, 10.56" L

1шт.

7

S7978

ROD, CONNECTING

CONNECTOR - (1-1/2" tube) - 1-7/8" - 12 male x 1-7/8" - 12 male - 37 degrees flared

4шт.

S6077

RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

"O" RING

4шт.

8

REF

INSTRUCTION

FILTER, hydraulic oil - (For breakdown, see Fig. 168)

2шт.

9

S234838

TUBE, hydraulic

1шт.

10

S105386

VALVE

check

1шт.

11

214-371

CLAMP,1.56"-1.81", T-Bolt

hose

2шт.

12

S85429

CLAMP

hose

8шт.

13

S114935

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 8" long

1шт.

14

S235288

TUBE, hydraulic 1.5" OD

1шт.

15

S609190

COOLER, oil

1шт.

16

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

90 degrees - (1-1/4" tube) - 1-5/8" - 12 male x 1" NPT male - 37 degrees flared

2шт.

17

S235289

TUBE, hydraulic 1.5" OD

1шт.

18

S114935

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 12" long

1шт.

19

S202582

LINE

HOSE, low pressure - (Bulk) - 1 piece - 1-1/4" ID x 9" long

1шт.

20

S233847

TUBE, hydraulic 1.25" OD x 5.06, 5.06" L

2шт.

21

S512420

LINE

TUBE, hydraulic

1шт.

22

S114935

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 15" long

1шт.

23

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING

2шт.

24

S236134

90 degrees

2шт.

25

S114935

HOSE

low pressure - (Bulk) - 1 piece - 1-1/2" ID x 8" long

1шт.

26

REF

INSTRUCTION

TANK, hydraulic oil - (For breakdown, see Figs. 160 and 162)

1шт.

27

214-378

CLAMP,1.40"-1.56", T-Bolt

hose

2шт.

28

S220252

TUBE,1" OD x 5, 3.75" L

hydraulic

1шт.

29

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 64" long 1.00" ID Bulk, SAE 100R3

1шт.

30

218-760

CAP,37 Degree, 1 7/8"-12

- (1/2" tube) - 1-7/8" - 12 female - 37 degrees flared

1шт.

31

S233846

TUBE, hydraulic

1шт.

32

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - (1 1/2" tube) - 1-7/8" - 12 male x 1-1/2" NPT male - 37 degrees flared

1шт.

33

S7943

ELBOW

90 degrees adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

34

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING

1шт.

35

S233938

TUBE, hydraulic

1шт.

36

S93266

CLAMP

1шт.

37

S98324

CLAMP

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

39

S234786

BRACKET

filter mounting

2шт.

40

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

41

195-530

WASHER,7/16"

flat - 1/2"

4шт.

42

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- (Nylok) - 1/2" NC x 1-1/4" gr 5

8шт.

44

218-520

ELBOW, 90 degrees - (1-1/2" tube) - 1-7/8" - 12 male x 1-1/2" NPT female - 37 degrees flared 90º, 1 7/8"-12, 37º x 1 1/2"-11 1/2, Fem NPTF

2шт.

45

A14157

FLANGE

CLAMP, half

4шт.

46

S213720

TUBE,1.5" OD x 4" L

hydraulic

2шт.

47

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

hose

8шт.

48

S114935

HOSE

low pressure - (Bulk) - 1-1/2" ID x 15" long

1шт.

49

S114935

HOSE

low pressure - (BUlk) - 1/2" ID x 7" long

1шт.
