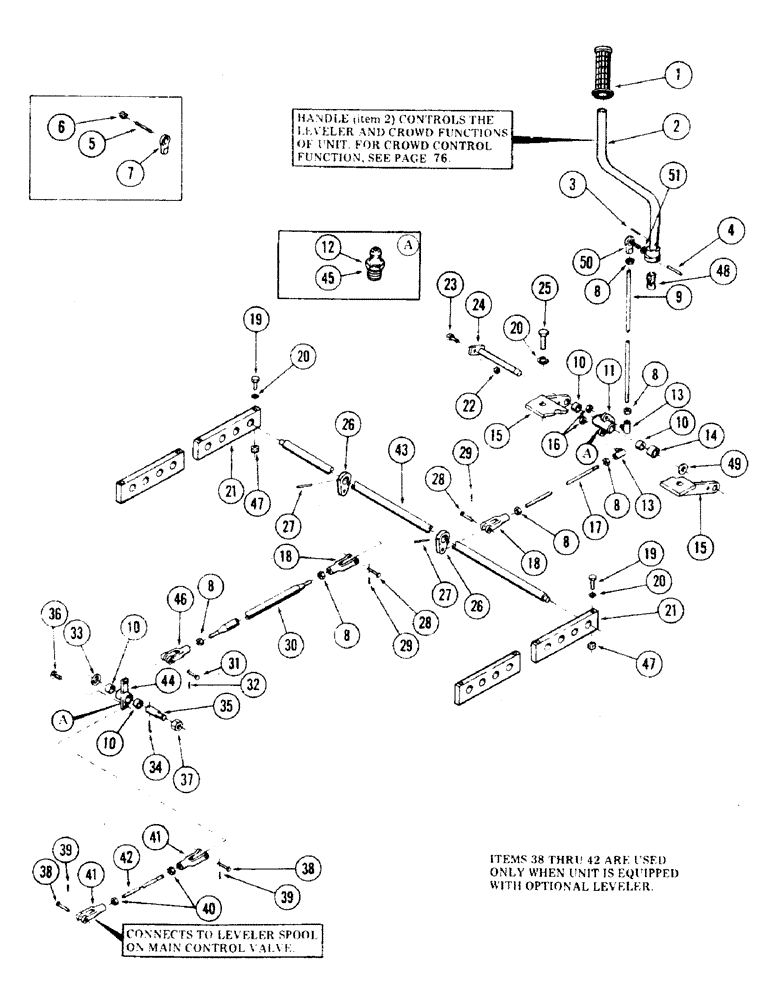

Запчасти Case 35 (082) - LEVELER CONTROL HANDLE AND ATTACHING PARTS (33) - BRAKES & CONTROLS

1

S109920

GRIP, handle - (Used on units with PIN 6266131 thru 6266300)

1шт.

S116544

GRIP

handle - (Used on units with PIN 6266301 and after)

1шт.

2

S513190

HANDLE

leveler control

1шт.

3

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

4

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

5

S47900

STUD - (Used on units with PIN 6266131 thru 6266228)

1шт.

6

S114146

NUT - (Used on units with 6266131 thru 6266228)

1шт.

7

S108030

JOINT

BALLJOINT - (Used on units with PIN 6266131 thru 6266228)

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

5шт.

9

S108056

STUD

1шт.

10

A30586

NEEDLE BEARING

BEARING, needle

4шт.

11

S231376

ARM ASSY.

BELLCRANK

1шт.

12

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (Straight)

1шт.

13

S215594

BALL

JOINT

2шт.

14

S108060

SPACER

1шт.

15

S231373

SUPPORT, bellcrank

1шт.

16

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NC

2шт.

17

S80384

ROD, connecting

1шт.

18

S66383

YOKE

2шт.

19

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" NC x 2-1/2" gr 5

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

21

S512159

SUPPORT

BAR, bearing support

2шт.

22

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- 1/4" NC x 1-1/4" gr 5

1шт.

24

S231378

PIN

SHAFT

1шт.

25

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

26

S237342

LEVER

2шт.

27

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

28

S105940

PIN,11.02mm OD x 22.23mm L

clevis

2шт.

29

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

30

S219275

ROD

connecting

1шт.

31

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

32

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

33

95-9

WASHER

flat - 5/8"

1шт.

34

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

35

S233271

PIN

1шт.

36

S69857

BOLT - (Locks bellcrank, item 44 to yoke when optional leveler is not used)

1шт.

37

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

38

S10768

PIN

clevis - 3/8" x 1.016" grip length

2шт.

39

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

40

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

2шт.

41

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

42

S81815

ROD, connecting

1шт.

43

S511737

SHAFT

1шт.

44

S229513

ARM ASSY.

BELLCRANK

1шт.

45

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (Straight)

1шт.

46

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

47

131-463

NUT,3/8"-16

NUT - self locking 3/8" NC

2шт.

48

S234960

YOKE

UNIVERSAL JOINT

1шт.

49

195-41

WASHER,5/8"

(Used as spacer between bellcranks) 5/8"

1шт.

50

S236680

BALL JOINT

BALLJOINT - (Used on units with PIN 6266229 and after)

1шт.

51

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Used on units with PIN 6266229 and after) 3/8"

1шт.
