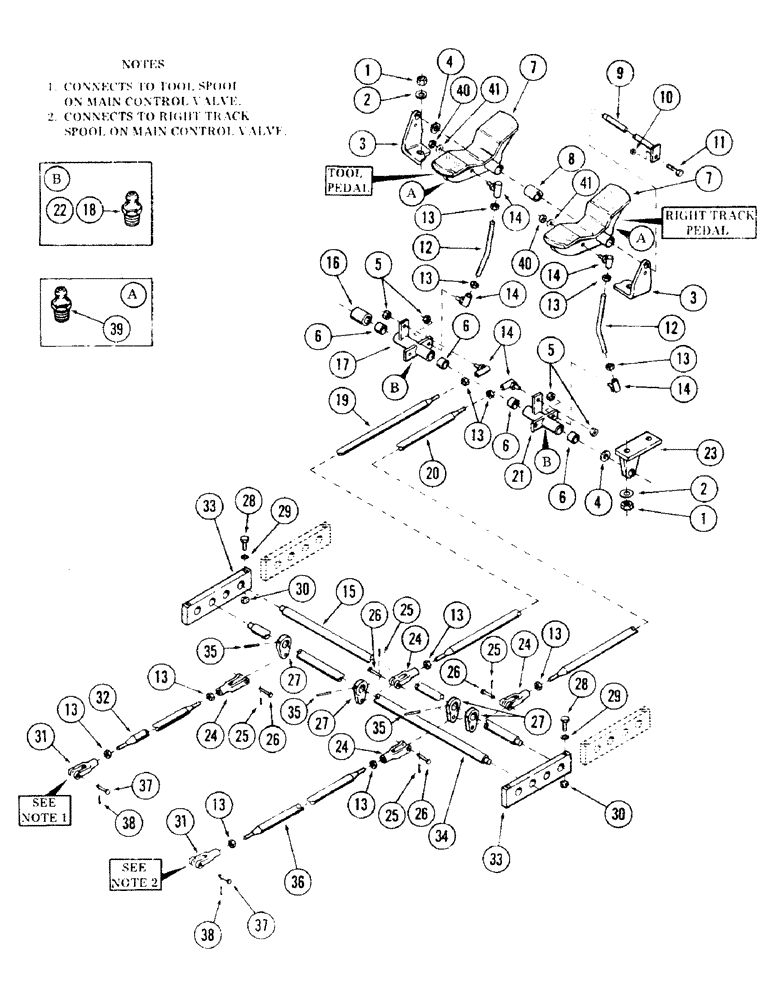

Запчасти Case 35 (080) - PEDALS AND ATTACHING PARTS FOR: RIGHT TRACK AND TOOL CONTROL (33) - BRAKES & CONTROLS

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S226342

BRACKET, foot pedal mounting

1шт.

4

195-41

WASHER,5/8"

(Used as spacer) 5/8"

1шт.

5

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

6шт.

6

A30586

NEEDLE BEARING

BEARING, needle

8шт.

7

S511074

PEDAL

2шт.

8

S64465

SPACER

1шт.

9

S218965

SHAFT ASSY.

SHAFT

1шт.

10

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

12

S229404

ROD

connecting

2шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

10шт.

14

S215594

BALL

JOINT

6шт.

15

S511741

SHAFT

1шт.

16

S91212

SPACER

1шт.

17

S229402

ARM ASSY.

BELLCRANK

1шт.

18

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (Straight)

1шт.

19

S220638

ROD

connecting

1шт.

20

S233225

ROD, connecting

1шт.

21

S229403

ARM ASSY.

BELLCRANK

1шт.

22

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (Straight)

1шт.

23

S229382

BRACKET, bellcrank support

1шт.

24

S66383

YOKE

4шт.

25

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

26

S105940

PIN,11.02mm OD x 22.23mm L

clevis

4шт.

27

S237342

LEVER

4шт.

28

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" NC x 1" gr 5

4шт.

29

195-522

WASHER,5/16"

lock - 3/8"

4шт.

30

131-463

NUT,3/8"-16

NUT - self locking 3/8" NC

4шт.

31

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

32

S233230

ROD, connecting

1шт.

33

S512159

SUPPORT

BAR, bearing support

2шт.

34

S511743

SHAFT

1шт.

35

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

36

S222940

ROD, CONNECTING

1шт.

37

S10768

PIN

clevis - 3/8" x 1.016" grip length

2шт.

38

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

39

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (Straight)

2шт.

40

131-493

NUT

self locking - 3/8" NF

2шт.

41

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.
