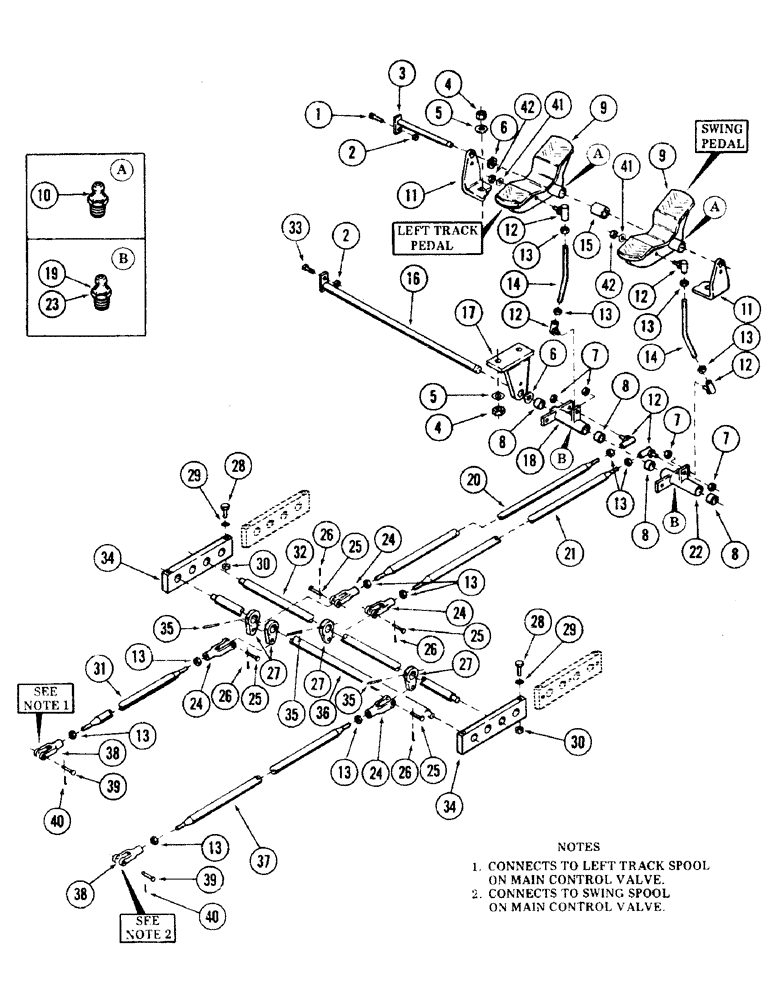

Запчасти Case 35 (078) - PEDALS AND ATTACHING PARTS FOR: LEFT TRACK AND SWING CONTROL (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
1
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
2
86625061
NUT,1/4"-20, GB
NUT, self locking - 1/4" NC
2шт.
3
S218965
SHAFT ASSY.
SHAFT
1шт.
4
131-70
NUT,1/2"-13, GB
NUT, self locking - 1/2" NC
4шт.
5
95-8
WASHER,1/2"
flat 1/2"
4шт.
6
195-41
WASHER,5/8"
(Used as spacer) 5/8"
1шт.
7
231-2446
NUT,3/8"-24, GB
NUT, self locking - 3/8" NF
6шт.
8
A30586
NEEDLE BEARING
BEARING, needle
4шт.
9
S511074
PEDAL
2шт.
10
219-10
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, lube - 1/4" NPT - (Straight)
2шт.
11
S226342
BRACKET, foot pedal mounting
1шт.
12
S215594
BALL
JOINT
6шт.
13
86585245
SPECIAL NUT,JAM, 5/8" - 18
jam - 3/8"
12шт.
14
S229404
ROD
connecting
2шт.
15
S64465
SPACER
1шт.
16
S229383
PIN ASSY.
SHAFT
1шт.
17
S229382
BRACKET, bellcrank support
1шт.
18
S229400
BELLCRANK
1шт.
19
219-10
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, lube - 1/4" NPT - (Straight)
1шт.
20
S233223
ROD, connecting
1шт.
21
S233224
ROD, connecting
1шт.
22
S229401
BELLCRANK
1шт.
23
219-10
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, lube - 1/4" NPT - (Straight)
1шт.
24
S66383
YOKE
4шт.
25
S105940
PIN,11.02mm OD x 22.23mm L
clevis
4шт.
26
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
4шт.
27
S237342
LEVER
4шт.
28
113-203
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8" NC x 2-1/2" gr 5
4шт.
29
95-522
WASHER, flat - 3/8"
4шт.
30
131-463
NUT,3/8"-16
NUT - self locking 3/8" NC
4шт.
31
S233229
ROD
connecting
1шт.
32
S511742
SHAFT
1шт.
33
113-70
BOLT,Hex, 1/4" - 20 x 2", Gr 5
- 1/4" NC x 1-1/4" gr 5
1шт.
34
S512159
SUPPORT
BAR, bearing support
2шт.
35
138-140
LOCK PIN,1/4" x 1 3/4", Slotted
PIN, 1/4" x 1 3/4", Slotted
4шт.
36
S511744
SHAFT
1шт.
37
S220642
ROD, connecting
1шт.
38
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE
2шт.
39
S10768
PIN
clevis - 3/8" x 1.016" grip length
2шт.
40
132-67
COTTER PIN,5/32" x 3/4"
Pin, Split (Cotter), 5/32" x 3/4"
2шт.
41
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
2шт.
42
131-493
NUT
self locking - 3/8" NF
2шт.
Выбрано товаров: 42
