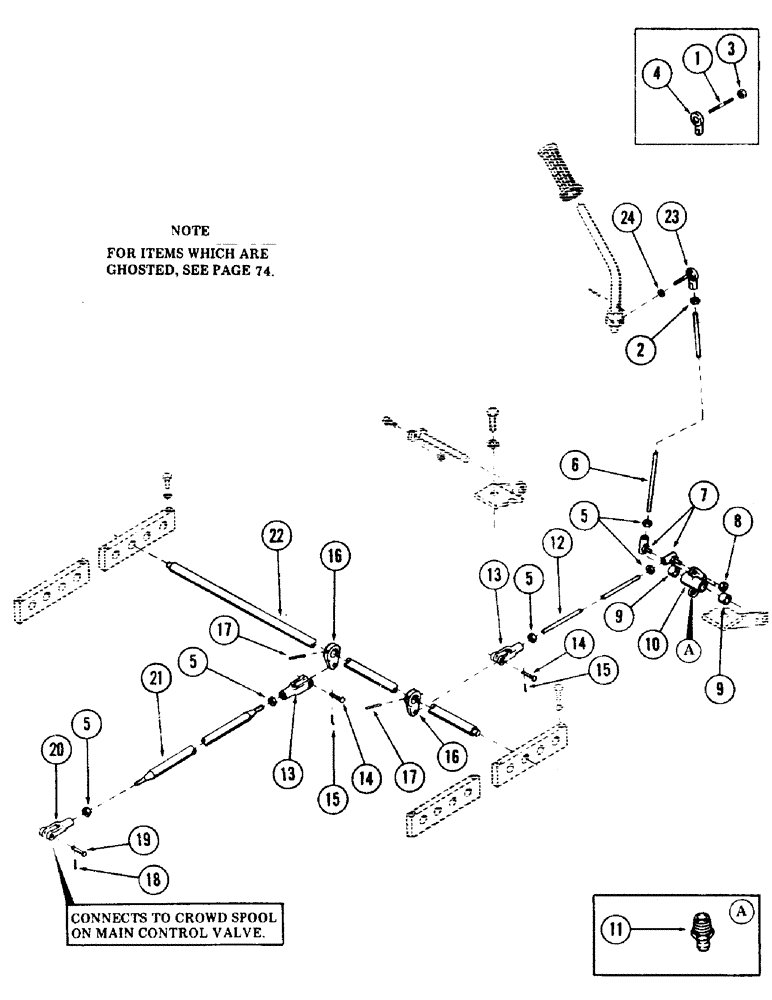

Запчасти Case 35 (076) - CROWD CONTROL HANDLE AND ATTACHING PARTS (33) - BRAKES & CONTROLS

1

S47990

STUD - (Used on units with PIN 6266131 thru 6266228)

1шт.

2

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NF

1шт.

3

S114146

NUT - (Used on units with PIN 6266131 thru 6266228)

1шт.

4

S108030

JOINT

BALLJOINT - (Used on units with PIN 6266131 thru 6266228)

1шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

5шт.

6

S108056

STUD

1шт.

7

S215594

BALL

JOINT

2шт.

8

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NC

2шт.

9

A30586

NEEDLE BEARING

BEARING, needle

2шт.

10

S213376

BELLCRANK

1шт.

11

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (Straight)

1шт.

12

S87920

ROD

connecting

1шт.

13

S66383

YOKE

2шт.

14

S105940

PIN,11.02mm OD x 22.23mm L

clevis

2шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

16

S237342

LEVER

2шт.

17

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

18

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

19

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

20

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

21

S229510

ROD, connecting

1шт.

22

S511739

SHAFT

1шт.

23

S236680

BALL JOINT

BALLJOINT - (Used on units with PIN 6266229 and after)

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Used on units with PIN 6266229 and after) 3/8"

1шт.
