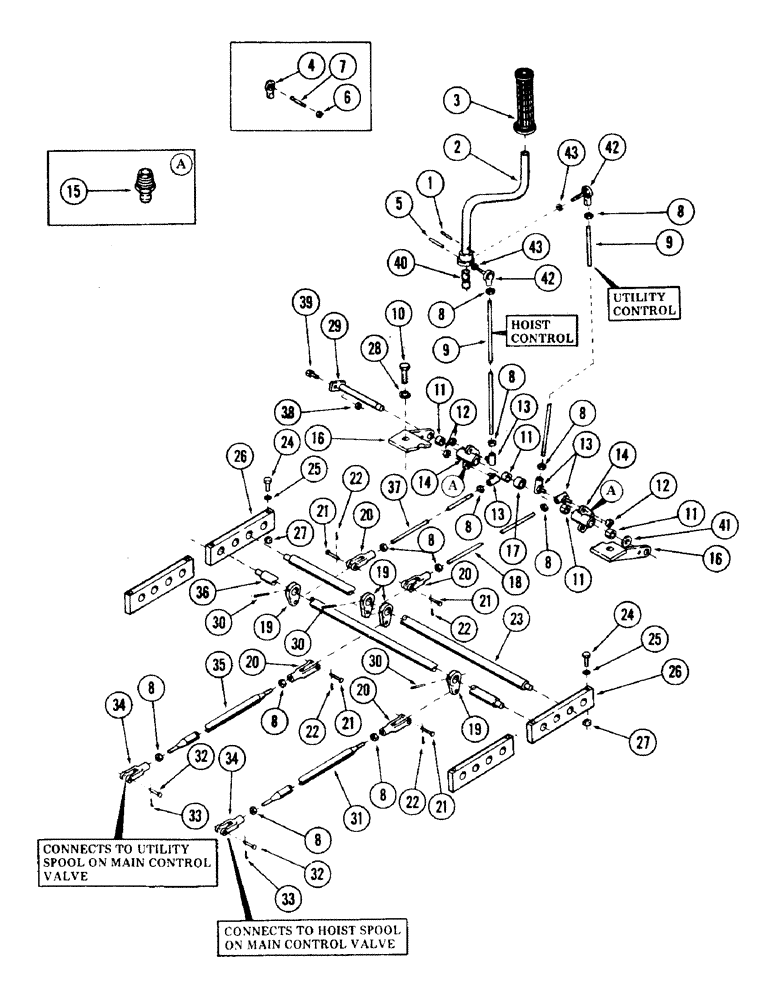

Запчасти Case 35 (074) - CONTROL HANDLE AND ATTACHING PARTS FOR: HOIST AND UTILITY CONTROL (33) - BRAKES & CONTROLS

1

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

2

S513190

HANDLE

hoist and utility control

1шт.

3

S109220

GRIP

handle - (Used on units with PIN 6266131 thru 6266300)

1шт.

S116544

GRIP

handle - (Used on units with PIN 6266301 and after)

1шт.

4

S108030

JOINT

BALLJOINT - (Used on units with PIN 6266131 thru 6266228)

2шт.

5

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

6

S114146

NUT - (Used on units with PIN 6266131 thru 6266228)

2шт.

7

S47990

STUD - (Used on units with PIN 6266131 thru 6266228)

2шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

12шт.

9

S108056

STUD

2шт.

10

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

11

A30586

NEEDLE BEARING

BEARING, needle

4шт.

12

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NC

4шт.

13

S215594

BALL

JOINT

4шт.

14

S231376

ARM ASSY.

BELLCRANK

2шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lube - 1/4" NPT - (Straight)

2шт.

16

S231373

SUPPORT, bellcrank

1шт.

17

S108060

SPACER

1шт.

18

S99321

ROD, connecting

1шт.

19

S237342

LEVER

4шт.

20

S66383

YOKE

4шт.

21

S105940

PIN,11.02mm OD x 22.23mm L

clevis

4шт.

22

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

23

S511738

SHAFT

1шт.

24

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" NC x 2-1/2" gr 5

4шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

S512159

SUPPORT

BAR, bearing support

2шт.

27

131-463

NUT,3/8"-16

NUT - self locking 3/8" NC

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

29

S231378

PIN

SHAFT

1шт.

30

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

31

S229508

ROD, connecting

1шт.

32

S10768

PIN

clevis - 3/8" x 1.016" grip length

2шт.

33

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

34

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

2шт.

35

S233226

ROD, connecting

1шт.

36

S511740

SHAFT

1шт.

37

S223839

ROD, connecting

1шт.

38

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

39

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

40

S234960

YOKE

UNIVERSAL JOINT

1шт.

41

195-41

WASHER,5/8"

(Used as shims between bellcrank) 5/8"

1шт.

42

S236680

BALL JOINT

BALLJOINT - (Used on units with PIN 6266229 and after)

2шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Used on units with PIN 6266229 and after) 3/8"

2шт.
