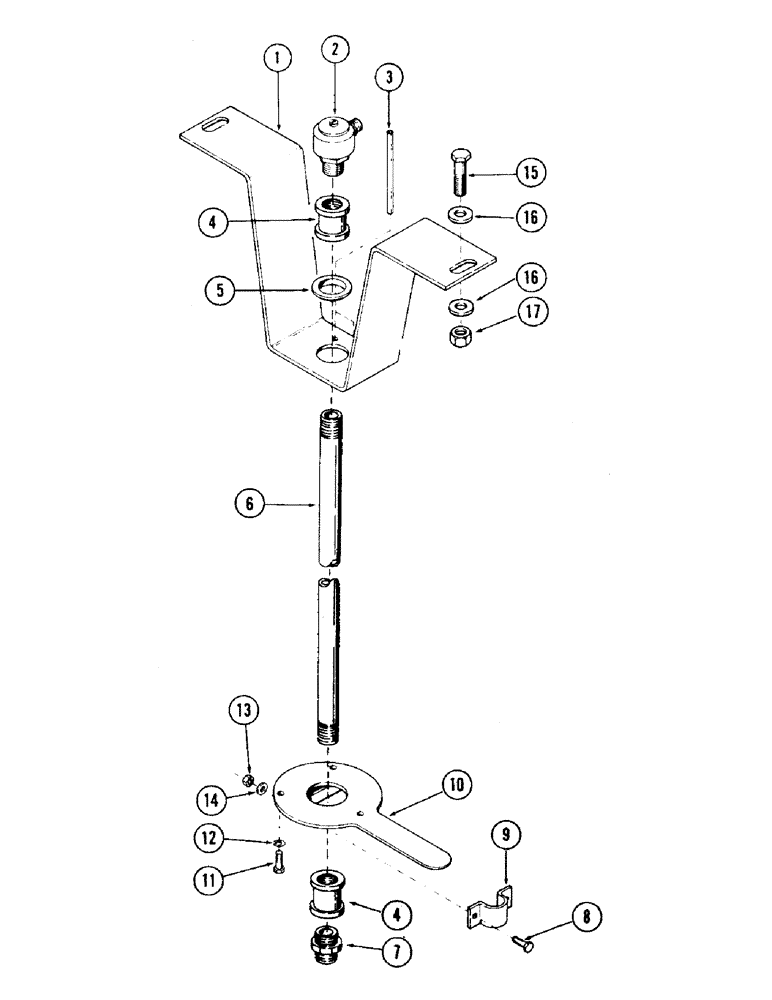

Запчасти Case 35 (092) - INNER SWIVEL, (USED WITH TRACK BRAKE) (14) - MAIN GEARBOX & DRIVE

S511749

PIVOT

SWIVEL ASSEMBLY, inner

1шт.

1

S229692

PLATE

guide

1шт.

2

REF

INSTRUCTION

SWIVEL - (For breakdown, see Fig. 94)

1шт.

3

138-169

LOCK PIN,5/16" x 4", Slotted

Pin, 5/16" x 4", Slotted

2шт.

4

S115683

COUPLING

- 1/4" NPT female

2шт.

5

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING, nylon

1шт.

6

221-719

PIPE,Nipple, 1/4" NPT x 24 1/2"

NIPPLE, pipe - 1/4" NPT x 24-1/4" long

1шт.

7

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

A55980

CLAMP

1шт.

10

S237399

LARGE PLATE

PLATE, lower swivel mounting - (Supersedes S209353)

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

13

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

4шт.

14

195-103

WASHER,5/16"

flat - 3/8"

2шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

195-104

WASHER,3/8"

flat - 7/16"

4шт.

17

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.
