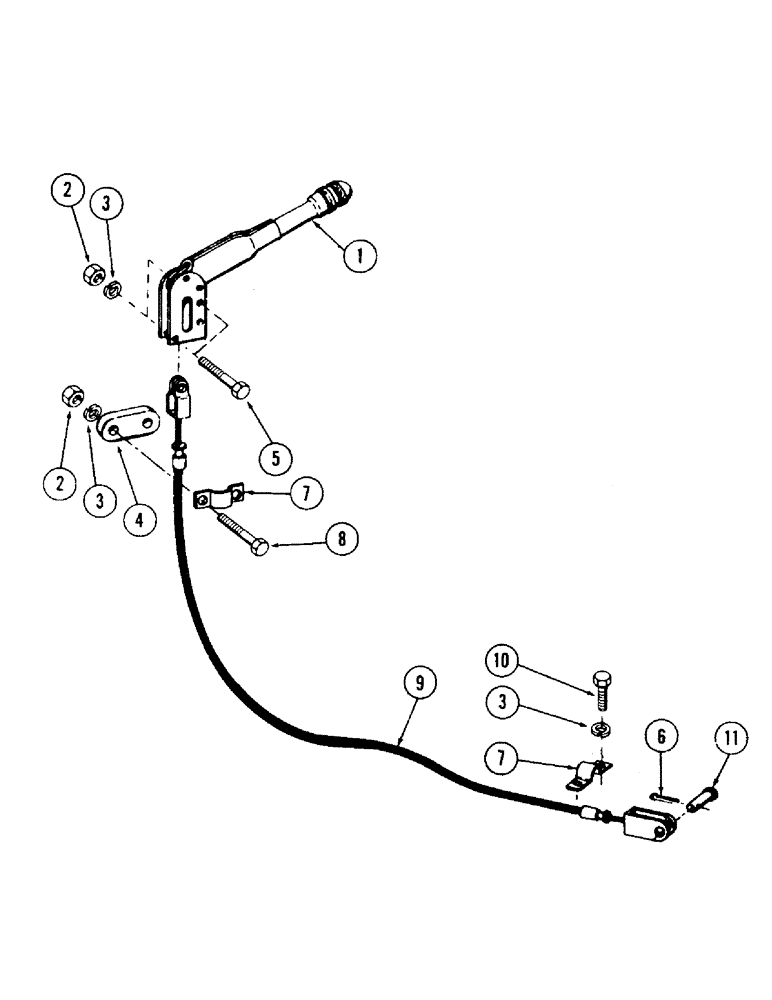

Запчасти Case 35 (090) - SWING BRAKE CONTROL (14) - MAIN GEARBOX & DRIVE

1

S26639

LEVER

hand brake

1шт.

2

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

S99304

SPACER

1шт.

5

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

6

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

7

A55980

CLAMP

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

S510475

CABLE

brake

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

S10715

PIN

clevis - 1/4" x .851" grip length

1шт.

12

S64206

SEAL

MOLDING, rubber - (In floor plate) - 1 piece - 6" long - (Not illustrated)

1шт.
