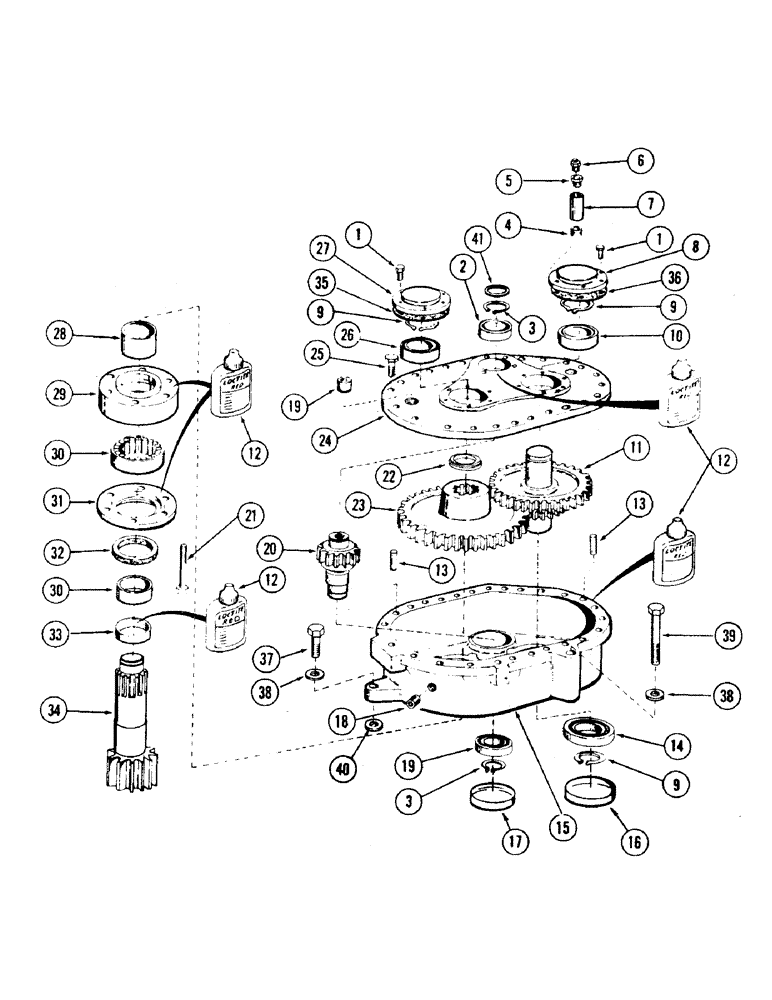

Запчасти Case 35 (086) - SWING REDUCER, (USED ON UNITS WITH PIN 6266262 AND AFTER) (14) - MAIN GEARBOX & DRIVE

S955797

REDUCER

swing - (Supersedes S954581)

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING - ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" PT x 1"

1шт.

5

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING - reducer - 3/8" PT x 1/8" PT

1шт.

6

L33264

BREATHER

VENT - breather

1шт.

7

S216625

TUBE,60" L

- oil breather

1шт.

8

S402194

CAP

- bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING - ball

1шт.

11

S603733

GEAR

- cluster - (Intermediate)

1шт.

12

S96077

SEAL

- 10 cc bottle - (Red) - (Replaces gaskets) - (Substitutes must not be used)

1шт.

13

S64319

CALIPER

DOWEL

2шт.

14

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

- ball

1шт.

14a

S615133

PACKAGE

KIT - gear case

1шт.

15

S613678

CASE

- gear (Supersedes S606331)

1шт.

16

S114620

PLUG

- expansion (Supersedes 41-58)

1шт.

17

S114619

PLUG

- expansion (Supersedes 41-58)

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT - (Socket head)

1шт.

19

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball

1шт.

20

S609333

SHAFT

PINION AND SHAFT - input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" x 3-1/4" NC (Grade 8)

6шт.

22

S214014

SPACER

-, Serial Range: bearing-gear

1шт.

23

S603736

GEAR

- drive

1шт.

24

S603758

COVER

- gear case

1шт.

25

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

22шт.

26

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball

1шт.

27

S214012

CAP

- bearing

1шт.

28

S225231

SPACER

1шт.

29

S508461

RETAINER

- roller bearing

1шт.

30

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING AND RACE ASSEMBLY

1шт.

31

S508460

RETAINER

- oil seal

1шт.

32

S98415

OIL SEAL

- oil

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S606286

SHAFT

AND GEAR - output

1шт.

35

S85842

GASKET

1шт.

36

S103261

GASKET

1шт.

37

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" x 2" NC (Grade 8)

1шт.

38

S92341

WASHER

- flat - 7/8" - (Hardened steel)

3шт.

39

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" x 5-3/4" NC (Grade 8)

2шт.

40

S107839

WASHER

- flat - (Used as shims) - (See service bulletin no. 122 for installations)

1шт.

41

S238616

GASKET

swing brake

1шт.
