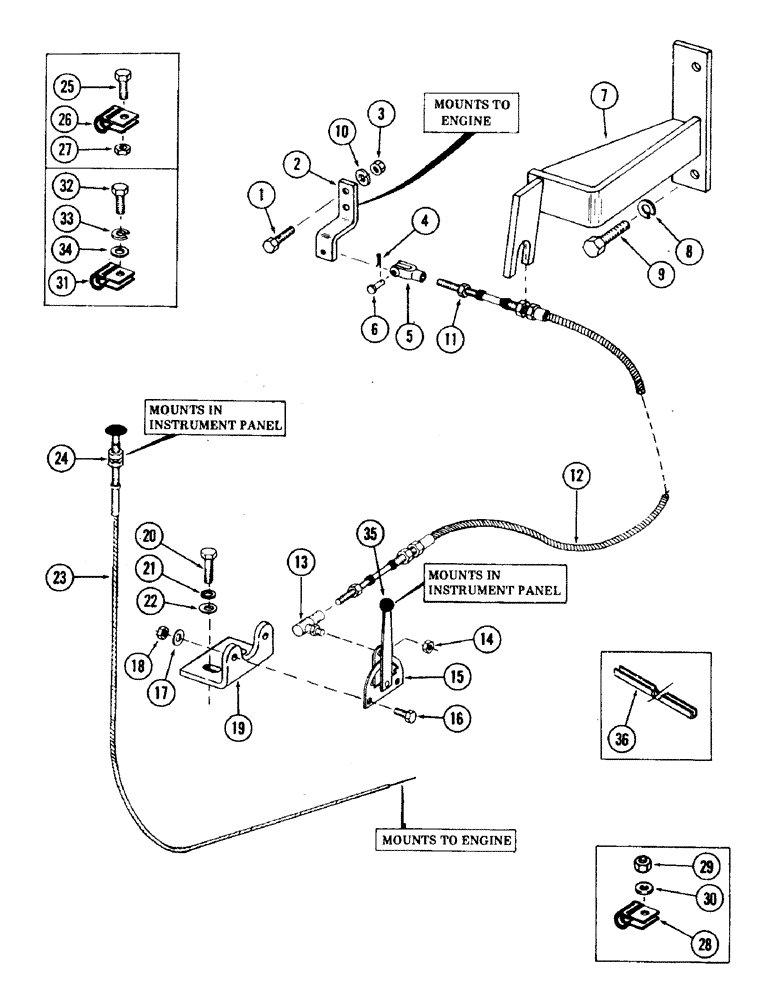

Запчасти Case 35 (040) - THROTTLE AND SHUT-OFF CONTROL CABLES (10) - ENGINE

1

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" NC x 7/8" gr 5 - (Used on CASE engine)

2шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" NF x 1" gr 5 - (Used on Detroit diesel engine)

2шт.

2

S92631

LEVER

throttle control - (Used on CASE engine)

1шт.

S219755

LEVER, throttle control - (Used on Detroit diesel engine)

1шт.

3

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC - (Used on CASE engine)

2шт.

131-85

LOCK NUT,5/16"-24, GB

NUT, self locking - 5/16" NF - (Used on Detroit diesel engine)

2шт.

4

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

5

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

6

S10714

CLEVIS PIN

PIN, clevis - 1/4" x .648" grip length

1шт.

7

S602574

BRACKET, throttle control - (Used on CASE engine)

1шт.

S219754

BRACKET, throttle control - (Used on Detroit diesel engine)

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Used on Case engine) 3/8"

2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Used on CASE engine - Detroit diesel engine uses existing hardware) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

10

195-103

WASHER,5/16"

flat - 3/8" - (Used on Detroit diesel engine)

1шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

12

S238507

CABLE

throttle - (Supersedes S220635)

1шт.

13

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT, ball

1шт.

14

131-498

LOCK NUT,1/4"-28, GB

NUT, self locking - 1/4" NF

1шт.

15

S91894

CONTROL LEVER

LEVER, throttle

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

195-518

WASHER,1/4", SAE

flat - 1/4"

2шт.

18

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

19

S231357

ANGLE

throttle lever mounting

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

195-103

WASHER,5/16"

flat - 1/4"

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, lock - 1/4"

2шт.

23

S231430

CABLE

control - (For engine shut-off on CASE diesel and Detroit diesel engines)

1шт.

S231431

CABLE

control - (For emergency shut-off on Detroit diesel engines) - (PIN 6266131 thru 6266266)

1шт.

24

195-103

WASHER,5/16"

flat, 3/8"

1шт.

25

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Used with CASE engine Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

26

S93104

CLAMP

- (Used with CASE engine)

1шт.

27

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC - (Used with CASE engine)

1шт.

28

A61275

CLIP

CLAMP - (Used with Detroit diesel engine)

1шт.

29

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC - (Used with Detroit diesel engine)

1шт.

30

195-33

WASHER,1/2"

flat - 9/16" - (Used with Detroit diesel engine)

1шт.

31

S93104

CLAMP

- (Used with CASE engine)

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Used with CASE engine) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, lock - 1/2" (Used with Case engine)

1шт.

34

195-525

WASHER,3/8", SAE

flat - 1/2'" - (Used with CASE engine)

1шт.

35

S94426

KNOB

BALL, throttle lever

1шт.

36

S64206

SEAL

MOLDING, rubber - (Bulk) - 1 piece x 18" long (Cab flor with controls)

1шт.
