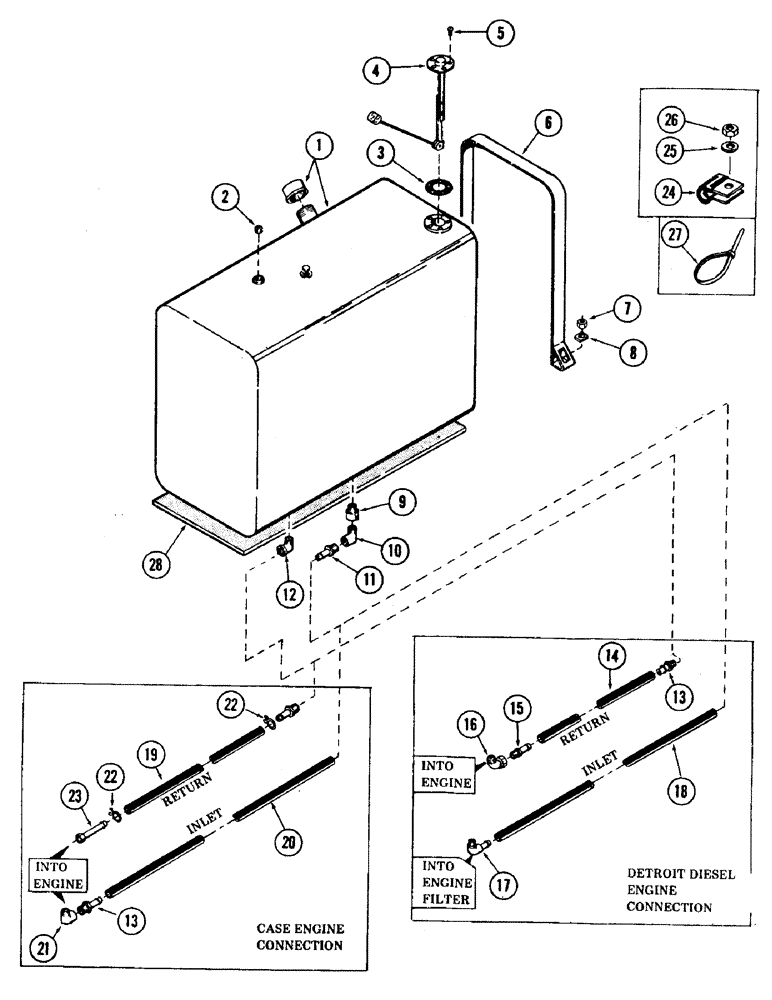

Запчасти Case 35 (038) - FUEL TANKS AND LINES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
S514118
FUEL TANK
TANK, fuel - (Supersedes S502212)
1шт.
S64019
FILLER CAP
CAP, fuel tank
1шт.
2
221-662
PLUG,Hex Hd, 1/4"-18
pipe - 1/4" NPT
1шт.
3
S49745
GASKET
GASKET
1шт.
4
S502600
SENDER UNIT
SENDING UNIT, fuel gauge
1шт.
5
174-100
SCREW,Sl Rnd Hd, #10 - 32 x 3/4"
machine - no. 10 NF x 3/4"
5шт.
6
S93863
STRAP
fuel tank mounting
2шт.
7
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC
4шт.
8
S108148
SPACER
4шт.
9
217-81
VALVE
shut off
1шт.
10
217-22
ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male
90 degrees - 3/8" NPT female x 3/8" NPT male
1шт.
11
220-7
FITTING
END, hose - fits 3/8" ID hose x 3/8" NPT male
1шт.
12
217-21
ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male
90 degrees - 1/4" NPT male x 1/4" NPT female
1шт.
13
220-3
FITTING
END, hose - fits 3/8" ID hose x 1/4" NPT male
1шт.
14
S63654
HOSE
fuel - (Bulk) - 1 piece - 3/8" ID x 101" long
1шт.
15
S67644
END, hose - fits 3/8" ID hose x 1/4" NPT
1шт.
16
217-21
ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male
90 degrees - 1/4" NPT male x 1/4" NPT female
1шт.
17
220-520
ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed
90 degrees hose end - fits 3/8" ID hose x 1/4" NPT male
1шт.
18
S63654
HOSE
fuel - (Bulk) - 1 piece - 3/8" ID x 90" long
1шт.
19
S63654
HOSE
fuel - (Bulk) - 1 piece - 3/8" ID x 88" long - (Used on units with PIN 6266131 thru 6266300)
1шт.
S80943
FLEXIBLE HOSE
HOSE, fuel - (Bulk) - 1 piece - 1/4" ID x 88" long - (Used on units with PIN 6266301 and after)
1шт.
20
S63654
HOSE
fuel - (Bulk) - 1 piece - 3/8" ID x 94" long
1шт.
21
217-21
ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male
90 degrees - 1/4" NPT male x 1/4" NPT female
1шт.
22
214-104
HOSE CLAMP,#9, 9/16", Spring
CLAMP, hose - (Used on units with PIN 6266131 thru 6266300)
2шт.
23
S209418
TUBE, fuel - (Used on units with PIN 6266131 thru 6266300)
1шт.
S66490
TUBE
fuel - (Used on units with PIN 6266301 and after)
1шт.
24
S49885
CLAMP
1шт.
25
195-104
WASHER,3/8"
flat - 3/8"
1шт.
26
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC
1шт.
27
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP, CABLE
1шт.
28
S224325
PAD
fuel tank
1шт.
Выбрано товаров: 31
