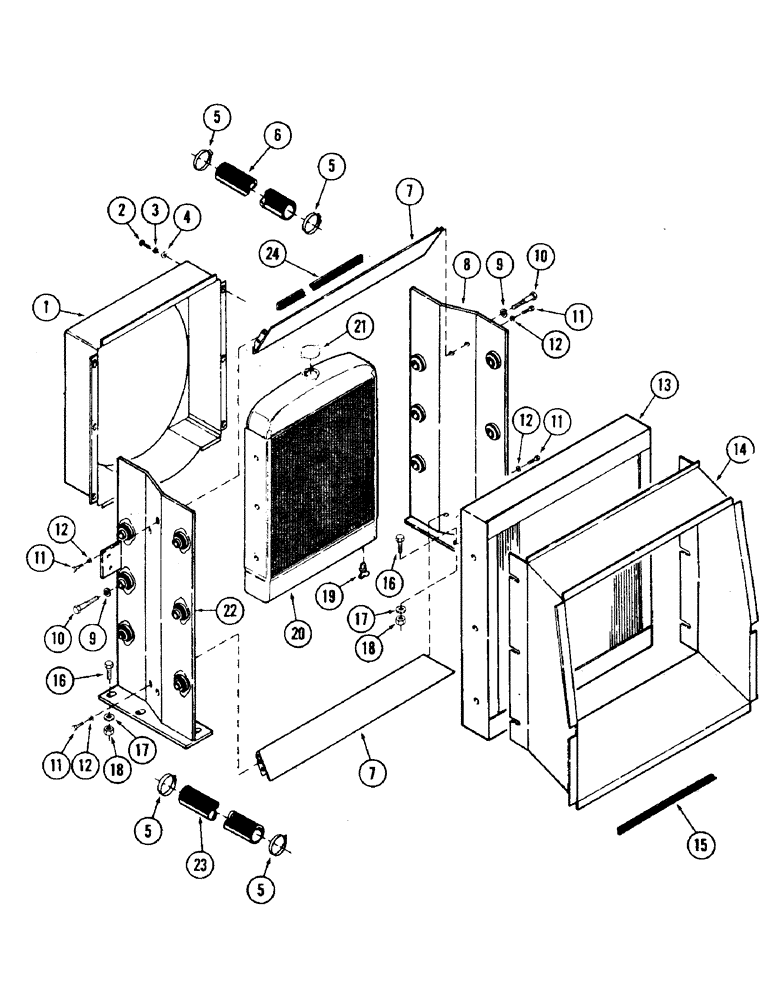

Запчасти Case 35 (036) - RADIATOR, OIL COOLER, HOSES WITH BRACKETS (10) - ENGINE

1

S602301

SHROUD

radiator - (Used with CASE engine)

1шт.

S612604

SHROUD, radiator - (Used with Detroit diesel engine)

1шт.

2

75-46

SCREW

- machine - 1/4" NC x 3/8" gr 5

6шт.

3

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4"

6шт.

4

195-518

WASHER,1/4", SAE

flat - 9/32" (Used with CASE engine)

6шт.

195-101

WASHER,3/16"

flat - 1/4" - (Used with Detroit diesel engine)

6шт.

5

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose - (Used with CASE engine)

4шт.

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, hose - (Used with Detroit diesel engine)

4шт.

6

S94322

RADIATOR HOSE,2.50" ID x 8.50", SAE 20R4 CLASS SC

- (Used with CASE engine) 2.50" ID x 8.50", SAE 20R4 CLASS SC

1шт.

S85934

RADIATOR HOSE

- (Used with Detroit diesel engine)

1шт.

7

S512738

BRACKET, radiator to cooler - (Upper and lower) - (Used with CASE engine)

2шт.

S512878

BRACKET, radiator to cooler - (Upper) - (Used with Detroit diesel engine)

1шт.

S512879

BRACKET, radiator to cooler - (Lower) - (Used with Detroit diesel engine)

1шт.

8

S512701

BRACKET, oil cooler and radiator - (Used with CASE engine)

1шт.

S512876

BRACKET, oil cooler and radiator - (Used with Detroit diesel engine)

1шт.

9

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

12шт.

10

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-3/4" gr 5

12шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Used with Case engine) Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used with Detroit diesel engine

8шт.

12

195-103

WASHER,5/16"

flat - 3/8"

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

13

S609190

COOLER, oil

1шт.

14

S612385

SHROUD, air

1шт.

15

S76711

SEAL

MOULDING - (Bulk) - 1 piece x 116" long

1шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

17

S95569

WASHER

hardened - 11/32"

8шт.

18

131-492

NUT,1/2"-13

NUT, self locking - 1/2" NC

8шт.

19

A23656

COCK, DRAIN

VALVE, radiator drain

1шт.

20

S505699

RADIATOR - (Used with CASE engine)

1шт.

S56881

RADIATOR - (Used with Detroit diesel engine)

1шт.

21

S89404

CAP

radiator - (7 lbs. pressure)

1шт.

22

S512699

BRACKET, oil cooler and radiator - (Used with CASE engine)

1шт.

S512874

BRACKET, oil cooler and radiator - (Used with Detroit diesel engine)

1шт.

23

S85822

HOSE

2.50" ID x 16.00", Radiator; Used With CASE Engine

1шт.

S64061

HOSE,120.00 mm

RADIATOR HOSE, , Lower (Used with Detroit Diesel Engine) 120.00 mm

1шт.

24

S76711

SEAL

MOULDING - (Bulk) - 1 piece x 48" long

1шт.
