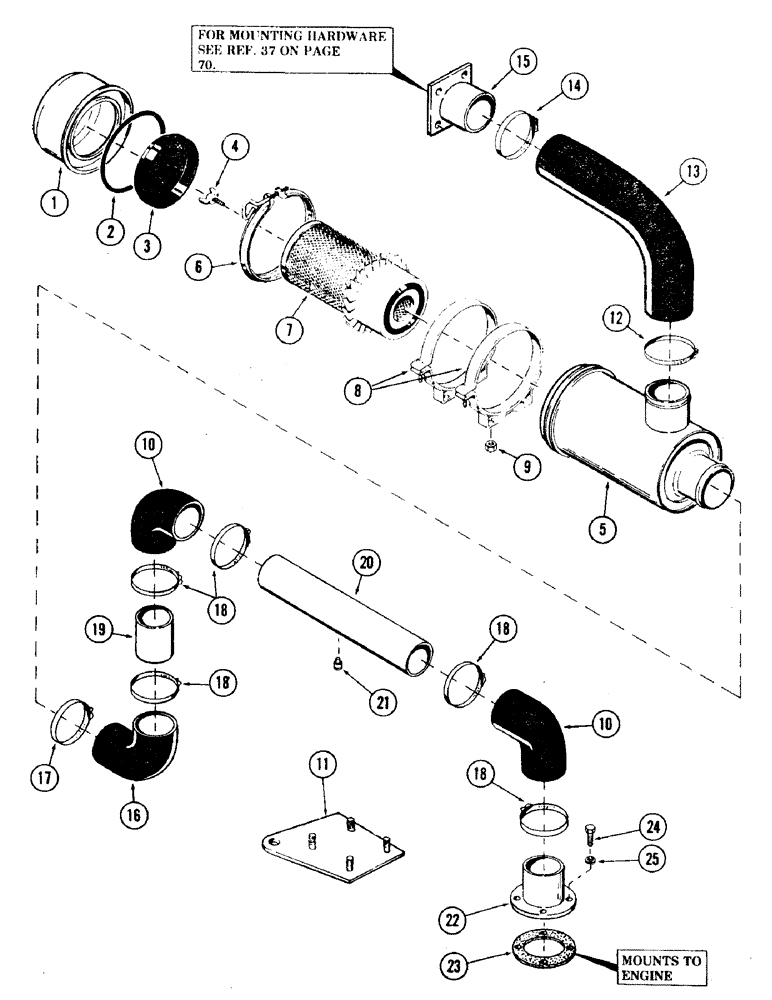

Запчасти Case 35 (034) - AIR CLEANER AND ATTACHING PARTS, (USED ON DETROIT DIESEL 4-53 ENGINE) (10) - ENGINE

R28797

CLEANER

air

1шт.

1

L33819

CUP

ASSEMBLY

1шт.

2

D50946

GASKET

"O" RING

1шт.

3

D50942

BAFFLE

ASSEMBLY

1шт.

4

L35499

NUT

ASSEMBLY

1шт.

5

NSS

NOT SOLD SEPARAT

BODY

1шт.

6

D50941

CLAMP

1шт.

7

R29295

FILTER, ELEMENT

ELEMENT ASSEMBLY

1шт.

8

S219850

BAND

mounting

2шт.

9

131-52

NUT,3/8"-16, GC

NUT - 3/8" NC

4шт.

10

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

2шт.

11

S236581

BRACKET, air cleaner mounting

1шт.

12

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP

1шт.

13

S97045

HOSE

air-cleaner - (Bulk - 1 piece x 20" long)

1шт.

14

214-373

CLAMP,#124, 5.06"-4.75", T-Bolt

1шт.

15

S236330

DUCT, air

1шт.

16

S513100

ELBOW

1шт.

17

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

1шт.

18

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

5шт.

19

S97715

TUBE

1шт.

20

S93396

TUBE,4" OD x 18" L

1шт.

21

REF

INSTRUCTION

INDICATOR, air restrictor - (See item 39 on Fig. 70)

1шт.

22

S230325

LINE,6.5" L

TUBE

1шт.

23

S69424

GASKET

1шт.

24

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
