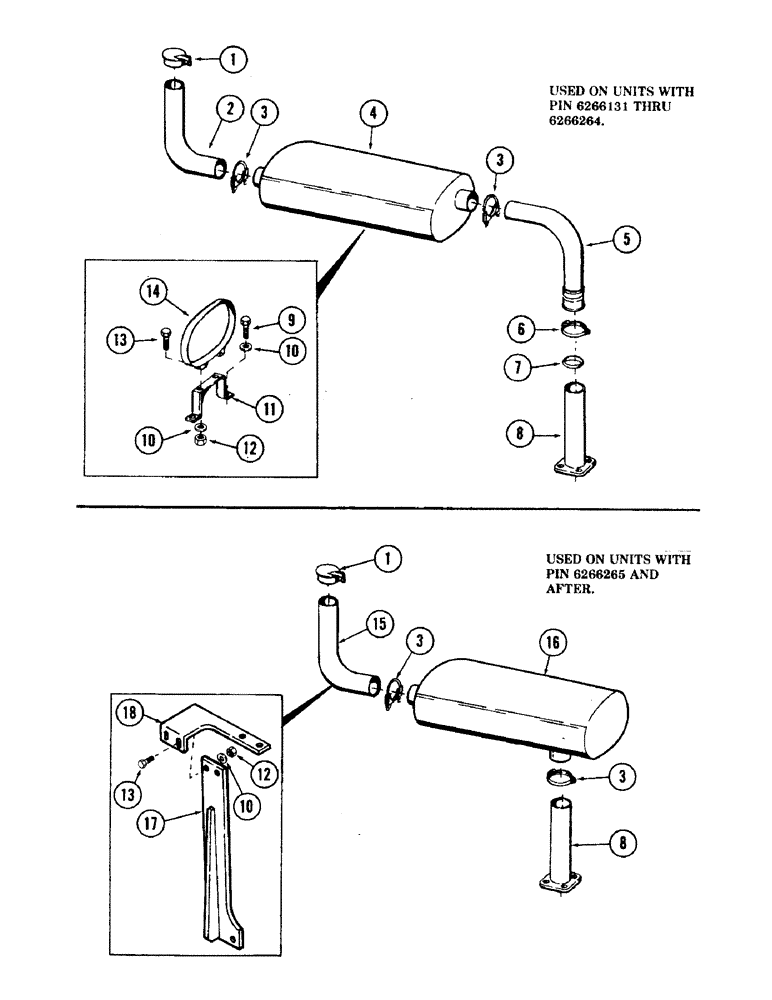

Запчасти Case 35 (030) - MUFFLER AND ATTACHING PARTS, (USED ON DETROIT DIESEL 4-53 ENGINES) (10) - ENGINE

1

A19795

CAP

exhaust pipe

1шт.

2

S111779

PIPE, EXHAUST SYSTEM

ELBOW, exhaust

1шт.

3

L12413

CLAMP

exhaust pipe

2шт.

4

S508420

MUFFLER

1шт.

5

S233624

ELBOW

exhaust

1шт.

6

S107151

CLAMP

exhaust

1шт.

7

S107152

GASKET

exhaust flange

1шт.

8

S233625

FLANGE ASSY

FLANGE, exhaust - (To manifold exhaust with existing hardware)

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

195-525

WASHER,3/8", SAE

flat - 3/8"

8шт.

11

S233209

BRACKET

muffler mounting

2шт.

12

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

S219850

BAND

muffler mounting

2шт.

15

S99158

ELBOW

exhaust

1шт.

16

S231674

MUFFLER

1шт.

17

S513648

BRACKET, muffler mounting

1шт.

18

S513650

BRACKET, muffler mounting

1шт.
