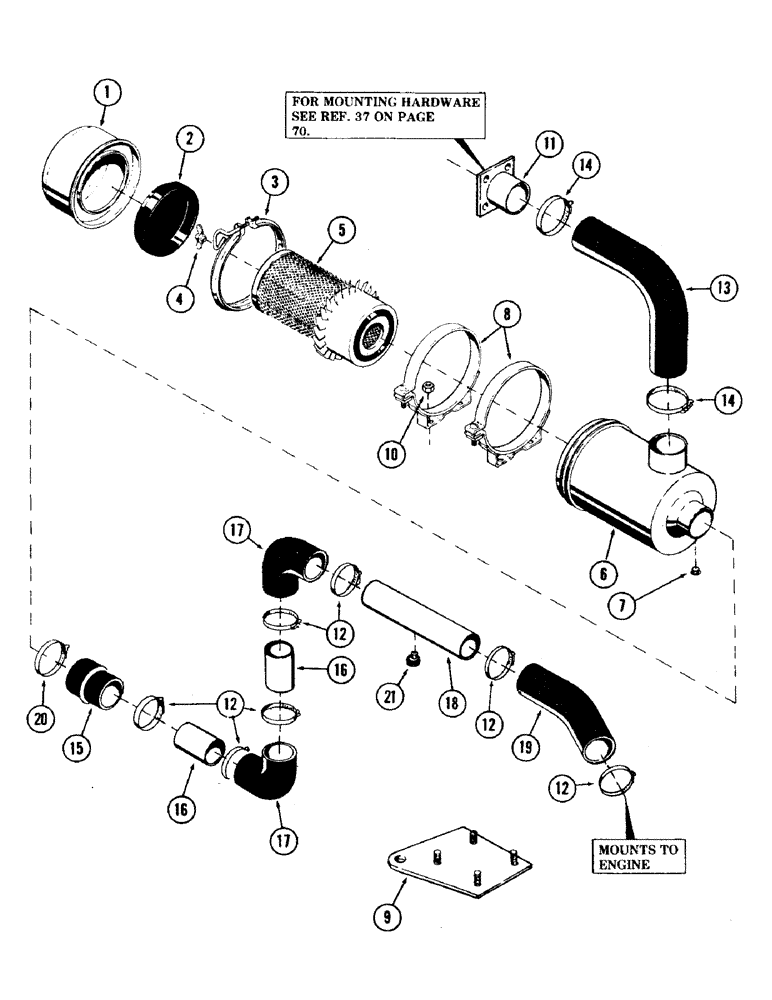

Запчасти Case 35 (026) - AIR CLEANER AND ATTACHING PARTS, (USED WITH CASE 336BDT DIESEL ENGINE) (10) - ENGINE

S512749

AIR CLEANER

1шт.

1

A40951

CUP

1шт.

2

D37979

BAFFLE

1шт.

3

R15731

CLAMP

1шт.

4

F91761

WING NUT

ASSEMBLY

1шт.

5

D56453

AIR CLEANER

ELEMENT

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

S113642

CAP

1шт.

8

S64722

BAND, air cleaner mounting

2шт.

9

S236581

BRACKET, air cleaner mounting

1шт.

10

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

11

S236392

DUCT

1шт.

12

S83025

CLAMP

7шт.

13

S73162

HOSE, flexible - (Bulk) - 1 piece x 26" long

1шт.

14

214-360

CLAMP,#100, 4.00"-4.31", T-Bolt

2шт.

15

S83126

ADAPTER

rubber hump

1шт.

16

S83330

TUBE

2шт.

17

L17181

ELBOW

2шт.

18

S114632

TUBE,3" OD x 10.06" L

1шт.

19

D50919

ELBOW

1шт.

20

214-359

CLAMP,#92, 3.75"-4.06", T-Bolt

1шт.

21

REF

INSTRUCTION

INDICATOR, air flow - (See item 39 on Fig. 70)

1шт.
