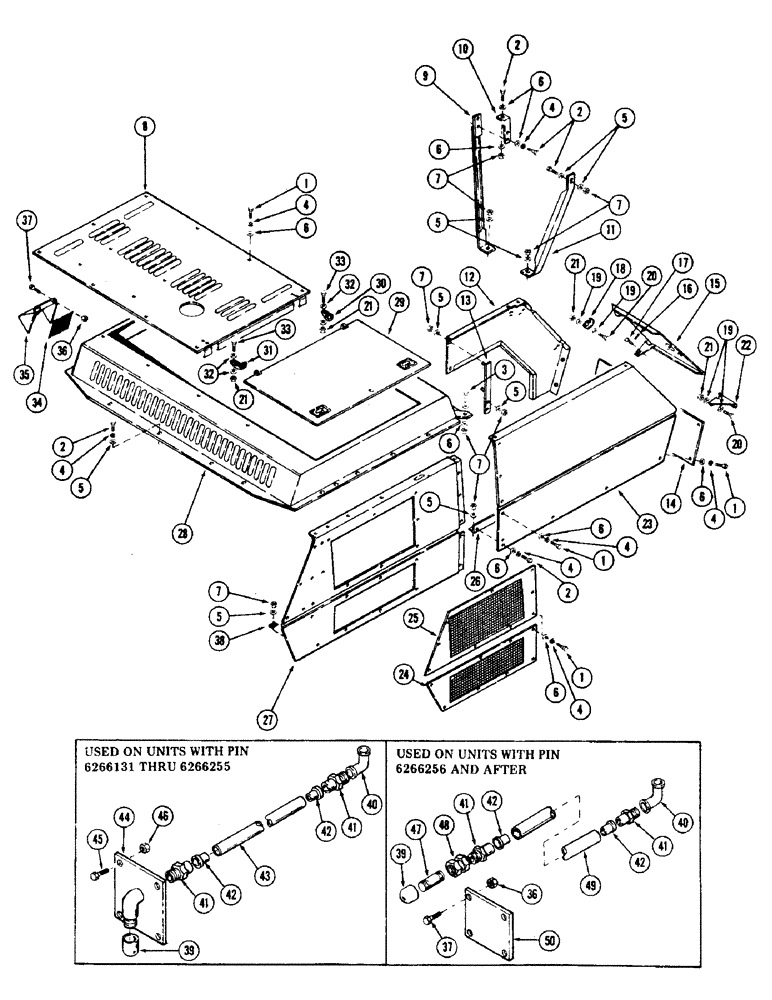

Запчасти Case 35 (070) - TURNTABLE SHROUDING AND ATTACHING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

S95569

WASHER

hardened flat - 1/2"

1шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened flat - 1/2"

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

8

S613262

COVER, engine - (Used with CASE engines) - (Used on units with PIN 6266131 thru 6266264)

1шт.

S613701

COVER, engine - (Used with CASE engines) - (Used on units with PIN 6266265 and after)

1шт.

S613263

COVER, engine - (Used with Detroit diesel engines) - (Used on units with PIN 6266131 thru 6266264)

1шт.

S613700

COVER, engine - (Used with Detroit diesel engines) - (Used on units with PIN 6266265 and after)

1шт.

9

S231608

BRACE

shroud support

1шт.

10

S108326

ANGLE

, Serial Range: brace-shroud

1шт.

11

S235917

BRACE, Serial Range: turntable-shroud

1шт.

12

S606687

SHROUD

1шт.

13

S220373

SUPPORT, shroud

1шт.

14

S219775

SHEET

COVER

1шт.

15

S508738

DOOR, front

1шт.

S219346

LATCH

1шт.

16

A70250

PIN

hair

1шт.

17

S217887

PIN

door holder

1шт.

18

S221455

BRACKET

door mounting

1шт.

19

195-103

WASHER,5/16"

flat - 3/8"

4шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

22

S221453

BRACKET

door holder

1шт.

23

S606688

SHROUD, right front

1шт.

24

S505834

GRILLE, shroud lower

1шт.

25

S505835

GRILLE, shroud upper

1шт.

26

S219895

ANGLE, shroud mount

1шт.

27

S613304

SHROUD, right rear

1шт.

28

S955292

SHROUD, engine

1шт.

29

S513353

DOOR, engine access

1шт.

S219346

LATCH

2шт.

30

S224921

BRACKET, door mounting

1шт.

31

S224922

BRACKET, door mounting

1шт.

32

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat - 3/8"

4шт.

33

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

34

S114094

SCREEN

1шт.

35

S613256

COVER, screen

1шт.

36

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

4шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Screen to shroud) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cover and screen to shroud Hex, 1/4"-20 x 1", G5

2шт.

38

S94090

SPACER

2шт.

39

A59568

INDICATOR

- air restrictor - (Used with Case engines)

1шт.

A59569

INDICATOR

- air restrictor - (Used with Detroit diesel engines)

1шт.

40

217-1050

90 ELBOW,1/8" - 27 NPTF Female

90 degrees - 1/8" PT

1шт.

41

222-1839

FITTING,17/32"-24 x 1/8" NPT

CONNECTOR - 3/8" tube x 1/8" PT

2шт.

42

222-2446

INSERT,1/4" Tube

- 3/8" tube

2шт.

43

S85503

TUBE,37.5" OD

- 28" - (Air cleaner to air restrictor)

1шт.

44

S237231

PLATE - (Mounts to shroud item 28)

1шт.

45

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

46

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4"

4шт.

47

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" PT

1шт.

48

217-226

COUPLING

FITTING - bulkhead

1шт.

49

S85503

TUBE,37.5" OD

- 48" - (Air restrictor to air cleaner)

1шт.

50

S115087

PLATE - (Covers hole on shroud item 28)

1шт.
