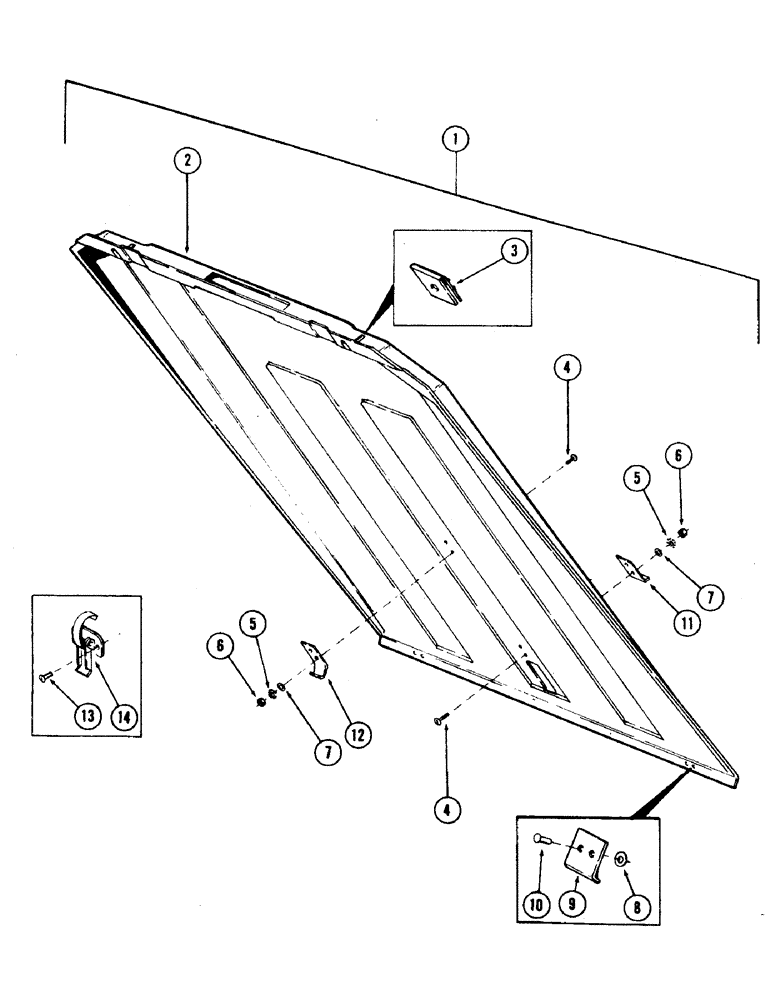

Запчасти Case 35 (060) - CAB AND ATTACHING PARTS, (VANDAL GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

operator - (Includes items listed below and Figs. 52 thru 58 and 62)

1шт.

1

S511103

GUARD

ASSEMBLY, vandal

1шт.

2

S955041

GUARD

plastic vandal

1шт.

3

S109504

"U" CLIP

2шт.

4

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

machine - 1/4" NC x 3/4"

4шт.

5

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

195-101

WASHER,3/16"

flat - 1/4"

4шт.

8

195-513

WASHER,#10

flat - 7/32"

4шт.

9

S108311

CLIP

2шт.

10

S109782

RIVET

blind

4шт.

11

S231617

CLIP

1шт.

12

S511226

BRACKET

1шт.

13

S109769

SCREW

machine - no. 10NF x 3/4"

2шт.

14

S109781

LATCH

fastener

1шт.
