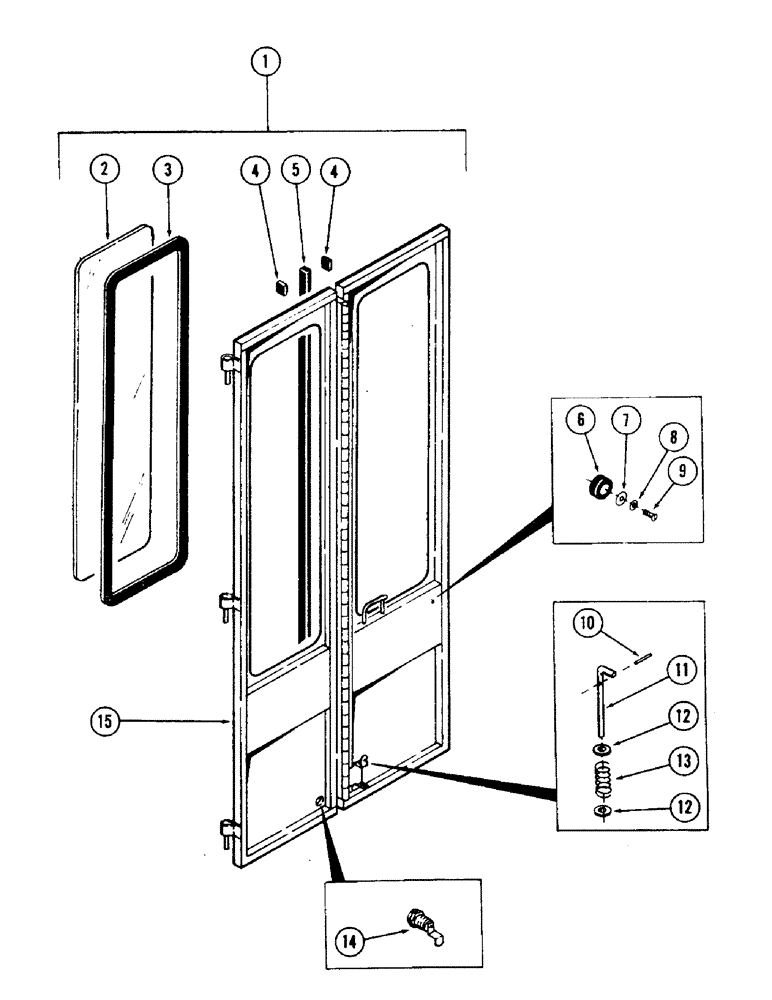

Запчасти Case 35 (056) - CAB AND ATTACHING PARTS, (DOOR AND ATTACHING PARTS) (90) - PLATFORM, CAB, BODYWORK AND DECALS

S954969

CAB

operator - (Includes items listed below and Figs. 52 and 58 thru 62)

1шт.

1

S955011

DOOR ASSY.

DOOR ASSEMBLY

1шт.

2

S108102

WINDOW - plastic

2шт.

3

S109778

SEAL

SETTING MATERIAL - (Bulk) - 2 pieces - 92" long

1шт.

4

S109777

SEAL

- (Bulk) - 1 piece - 6" long - (Cut into 4 pieces - 1.5" length)

1шт.

5

S109508

SEAL

- (Bulk) - 1 piece - 59" long

1шт.

6

S109512

BUMPER

door stop

1шт.

7

S109505

WASHER, fender

1шт.

8

195-513

WASHER,#10

flat - 7/32"

1шт.

9

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

machine - no. 10-32 NF x 1"

1шт.

10

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

11

S231613

PIN

1шт.

12

195-102

WASHER,1/4"

flat - 5/16"

2шт.

13

S238355

SPRING

- (Supersedes S62977)

1шт.

14

S90080

LOCK

door

1шт.

15

NSS

NOT SOLD SEPARAT

DOOR, weldment

1шт.

16

REF

INSTRUCTION

INSULATION - (See item 3 on Fig. 62)

1шт.

17

REF

INSTRUCTION

INSULATION - (See item 4 on Fig. 62)

1шт.

18

S95517

ADHESIVE

- (Not illustrated)

1шт.
