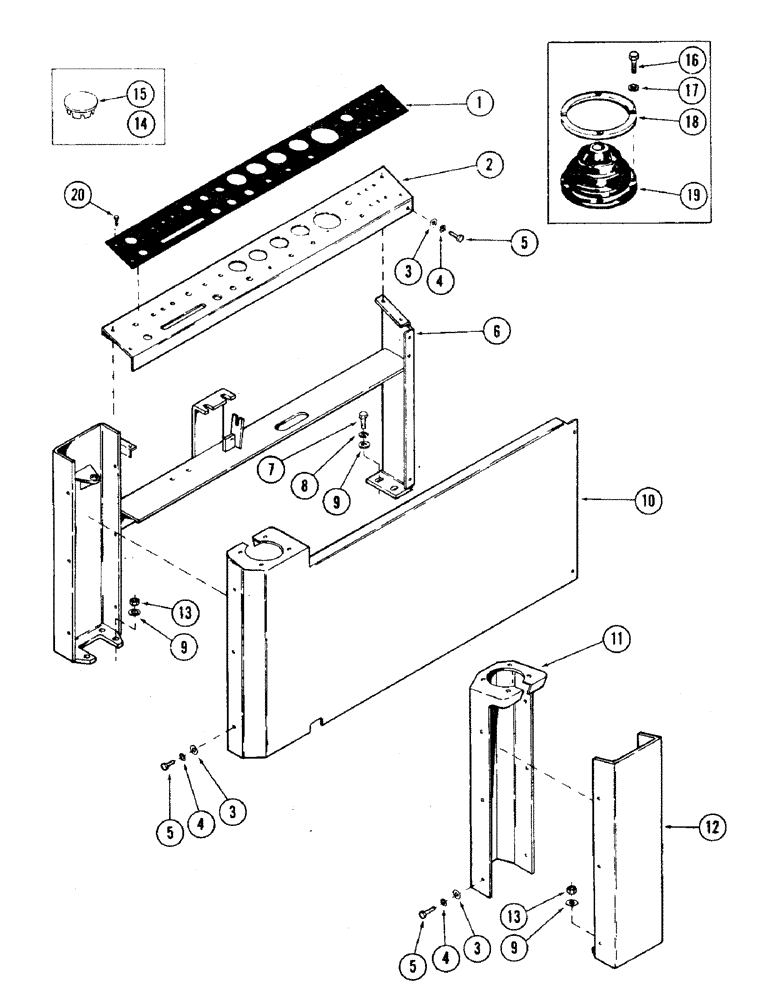

Запчасти Case 35 (050) - INSTRUMENT PANEL AND SUPPORTS FOR HAND CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S612019

DECAL, instrument panel - (Used on units with PIN 6266131 thru 6266240)

1шт.

S612985

DECAL, instrument panel - (Used on units with PIN 6266241 and after)

1шт.

2

S610602

PANEL, instrument - (Used on units with PIN 6266131 thru 6266240)

1шт.

S612985

PANEL, instrument - (Used on units with PIN 6266241 and after)

1шт.

3

195-101

WASHER,3/16"

flat - 1/4"

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

6

S610657

SUPPORT AND FRAME, right control

1шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

195-33

WASHER,1/2"

flat - 1/2"

10шт.

10

S610679

COVER, right control panel

1шт.

11

S610678

COVER, left control panel

1шт.

12

S511068

SUPPORT

left control

1шт.

13

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

8шт.

14

353-404

PLUG,Dome, .500" hole, Nylon

Used to plug hole in instrument panel when work lights or fast hoist is used Dome, .500" hole, Nylon

2шт.

15

353-406

PLUG,Dome, .625" hole, Nylon

hose - 5/8" dia. - (Used to plug hole in instrument panel when emergency shut-off or cold start is not used)

2шт.

16

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

machine - no. 10 NF x 5/8"

8шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

18

S108804

RING

mounting

2шт.

19

S232150

BOOT

rubber

2шт.

20

187-1812

SCREW, self tapping - no. 6 NF x 1/4"

1шт.
