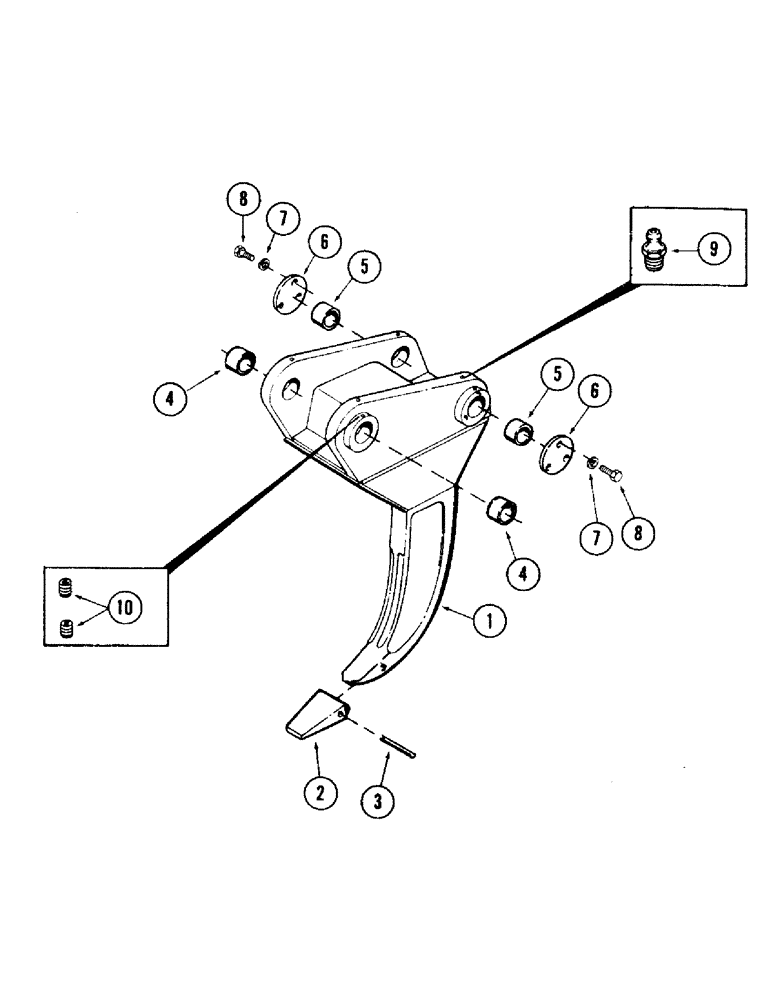

Запчасти Case 35 (110) - RIPPER TOOTH (84) - BOOMS, DIPPERS & BUCKETS

1

S609798

TOOTH, ripper

1шт.

2

S25334

POINT

TIP, replaceable

1шт.

3

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

4

S234482

BUSHING

2шт.

5

S234928

BUSHING

2шт.

6

S106642

COVER

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" gr 8

6шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT (Straight)

4шт.

10

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

4шт.
