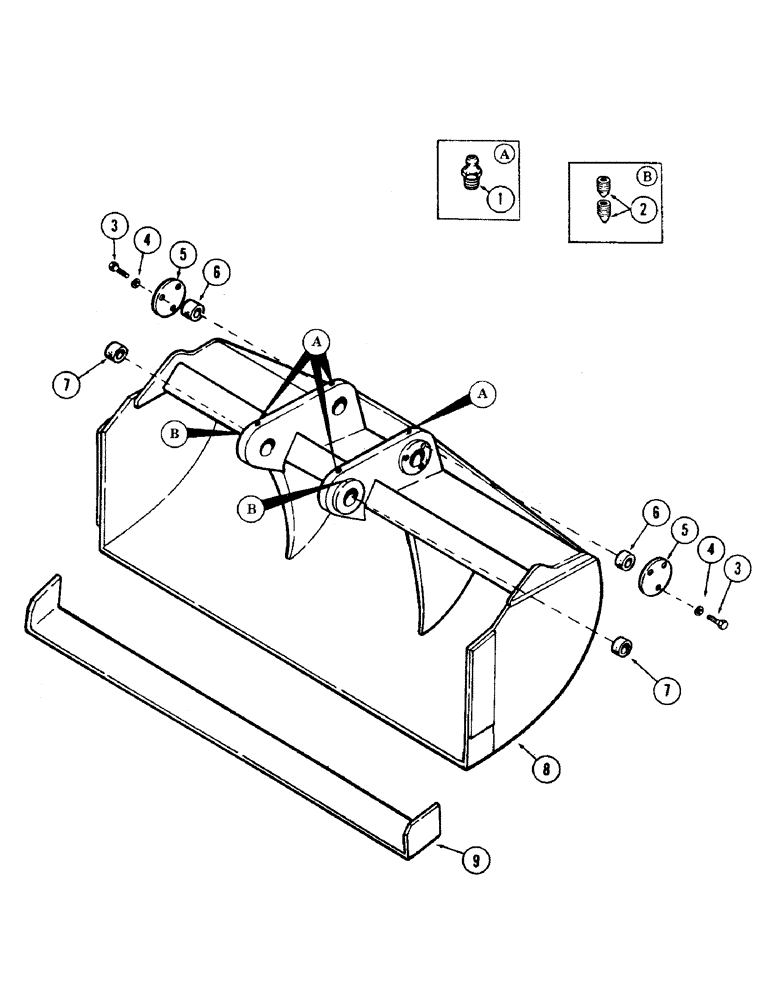

Запчасти Case 35 (108) - DITCH BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

4шт.

2

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" - (Cone point)

4шт.

3

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" gr 8

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

S106642

COVER

2шт.

6

S229988

BUSHING

2шт.

7

S234483

BUSHING

2шт.

8

S955408

BUCKET, ditch - 60"

1шт.

9

S206752

EDGE

cutting - 60"

1шт.
