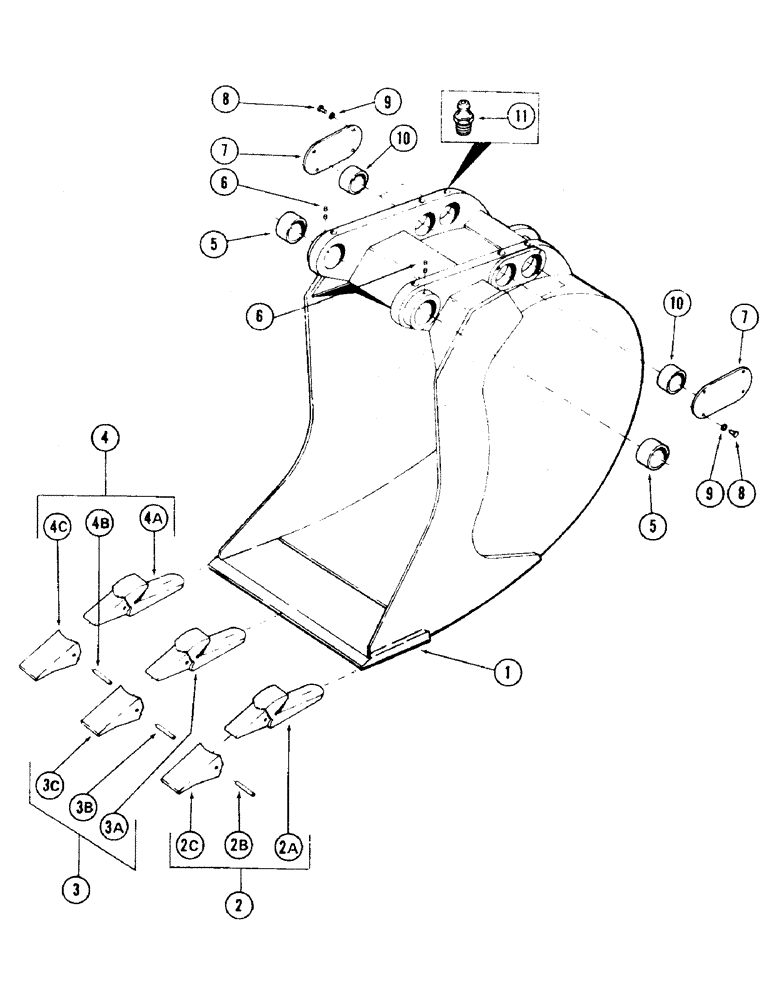

Запчасти Case 35 (104) - BACKHOE BUCKETS, (GENERAL PURPOSE), 1/2 CU. YD. BACKHOE BUCKET (30" WIDE (84) - BOOMS, DIPPERS & BUCKETS

S955091

BUCKET ASSEMBLY - backhoe - 1/2 cu. yd.

1шт.

1

S216317

EDGE, cutting - 30"

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside - (Parts list below)

1шт.

3

S503108

TOOTH

ASSEMBLY - center - (Parts list below)

2шт.

4

S510491

TOOTH

ASSEMBLY - left outside - (Parts list below)

1шт.

S955093

BUCKET ASSEMBLY - backhoe - 3/4 cu. yd.

1шт.

1

S216318

EDGE, CUTTING

- 36"

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside - (Parts listed below)

1шт.

3

S503108

TOOTH

ASSEMBLY - center - (Parts listed below)

3шт.

4

S510491

TOOTH

ASSEMBLY - left outside - (Parts listed below)

1шт.

S955095

BUCKET ASSEMBLY - backhoe - 1 cu. yd.

1шт.

1

S216319

EDGE, cutting - 42"

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside - (Parts listed below)

1шт.

3

S503108

TOOTH

ASSEMBLY - center - (Parts listed below)

4шт.

4

S510491

TOOTH

ASSEMBLY - left outside - (Parts listed below)

1шт.

2

S510490

TOOTH

ASSEMBLY - right outside

1шт.

2a

S609960

SHANK

tooth ASSEMBLIES

1шт.

2b

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Tooth assemblies 1/2" x 2 1/2", Slotted

1шт.

2c

S503093

POINT

TIP, tooth ASSEMBLIES

1шт.

3

S503108

TOOTH

ASSEMBLY - center

1шт.

3a

S59402

SHANK

tooth ASSEMBLIES

1шт.

3b

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Tooth assemblies 1/2" x 2 1/2", Slotted

1шт.

3c

S503093

POINT

TIP, tooth ASSEMBLIES

1шт.

4

S510491

TOOTH

ASSEMBLY - left hand

1шт.

4a

S609961

SHANK, BUCKET TOOTH

SHANK, tooth ASSEMBLIES

1шт.

4b

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Tooth assemblies 1/2" x 2 1/2", Slotted

1шт.

4c

S503093

POINT

TIP, tooth ASSEMBLIES

1шт.

5

S234483

BUSHING

BUCKET RELATED PARTS

2шт.

6

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" BUCKET RELATED PARTS

4шт.

7

S229978

COVER

BUCKET RELATED PARTS

2шт.

8

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" gr 5 BUCKET RELATED PARTS

8шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related parts 3/8"

8шт.

10

S229988

BUSHING

BUCKET RELATED PARTS

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight) BUCKET RELATED PARTS

6шт.
