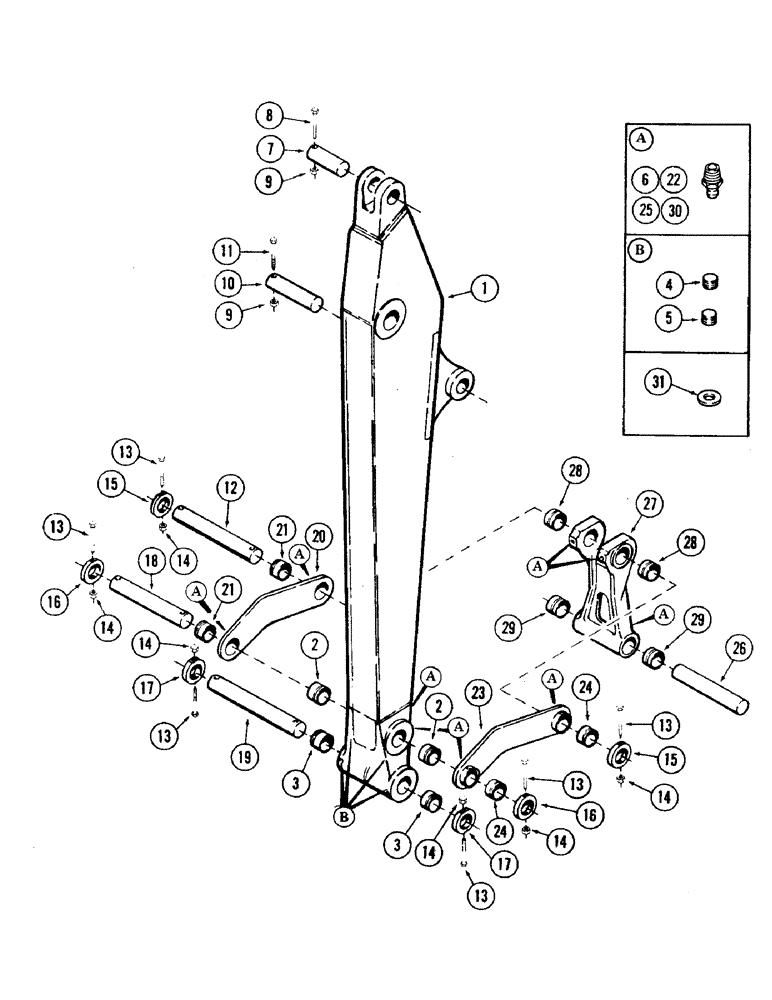

Запчасти Case 35 (098) - "E" BOOM DIPPERSTICK WITH ATTACHMENT LINKS AND PINS (84) - BOOMS, DIPPERS & BUCKETS

1

S955144

DIPPER

STICK - (9')

1шт.

S955146

BOOM

DIPPERSTICK - (10'5")

1шт.

2

S229564

BUSHING

2шт.

3

S511922

BUSHING

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set

4шт.

5

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

4шт.

7

S233798

PIN

crowd, Serial Range: cylinder-dipperstick

1шт.

8

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

1шт.

9

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

10

S233805

PIN

Tool, Serial Range: cylinder-dipperstick

1шт.

11

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

1шт.

12

S233809

LARGE PIN

PIN, tool, Serial Range: cylinder-links

1шт.

13

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- 1/2" NC x 4-1/4" gr 5

6шт.

14

S108054

NUT

self locking capped end - 1/2" NC

6шт.

15

S113136

COLLAR

3шт.

16

S113137

COLLAR

2шт.

17

S108660

COLLAR

2шт.

18

S233808

PIN

, Serial Range: dipperstick-links

1шт.

19

S233813

PIN

, Serial Range: dipperstick-bucket

1шт.

20

S233780

ARM

LINK - (Left hand)

1шт.

21

S511923

BUSHING

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

2шт.

23

S233781

LINK ASSY.

LINK - (Right hand)

1шт.

24

S229548

BUSHING

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

2шт.

26

S233811

PIN

, Serial Range: link-bucket

1шт.

27

S610353

LINK

ASSEMBLY

1шт.

28

S512013

BUSHING

2шт.

29

S229548

BUSHING

2шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

3шт.

31

S111775

WASHER

- 2-1/2" ID x 4" OD - (1/8" thickness) - (For pin joints) - (Used as shims)

1шт.

S111776

WASHER

- 3" ID x 5" OD - (1/8" thickness) - (For pin joints) - (Used as shims)

1шт.

S112015

WASHER

- 2-3/4" ID x 5" OD - (1/8" thickness) - (For pin joints) - (Used as shims)

1шт.
