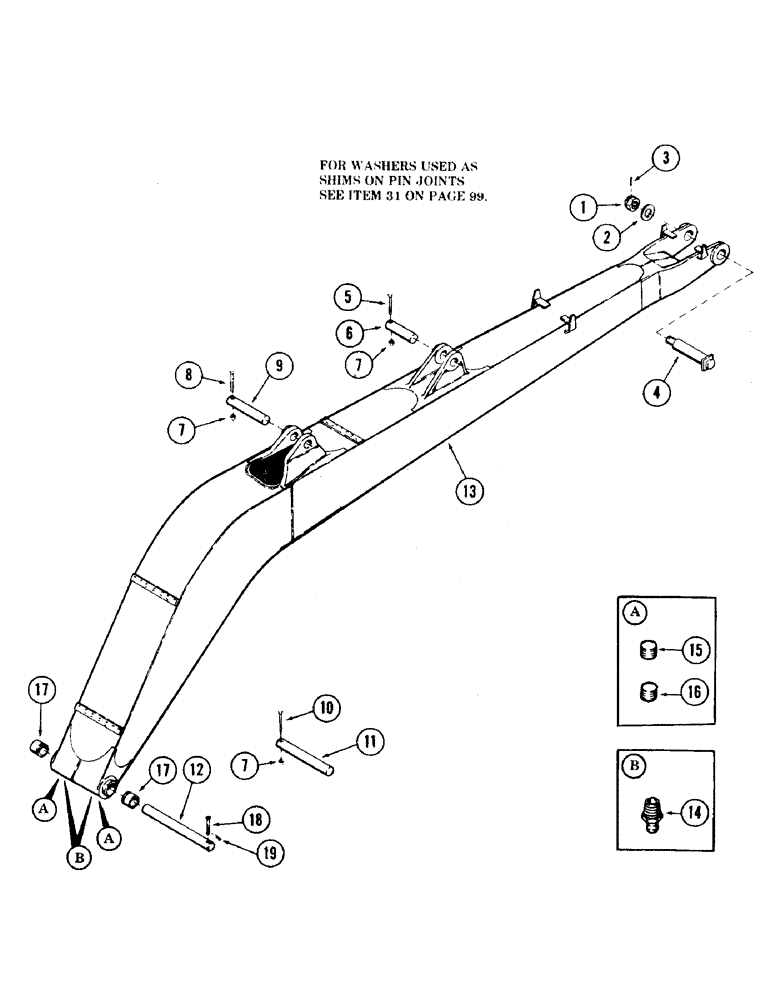

Запчасти Case 35 (096) - MAIN "E" BOOM AND PINS (84) - BOOMS, DIPPERS & BUCKETS

1

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, slotted - 2" NC

1шт.

2

S110511

WASHER

flat

1шт.

3

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

4

S233712

LARGE PIN

PIN -, Serial Range: (Boom-dipper)

1шт.

5

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- 1/2" NC x 5-1/4" gr 8

1шт.

6

S233798

PIN

- (Crowd cylinder base, Serial Range: end-boom)

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.

8

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- 1/2" NC x 4-3/4" gr 8

1шт.

9

S233793

PIN

- (Hoist rod, Serial Range: end-boom)

1шт.

10

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

BOLT - 1/2" NC x 5-3/4" gr 8

1шт.

11

S233787

PIN

- (Hoist cylinder base, Serial Range: end-turntable)

1шт.

12

S233785

PIN

-, Serial Range: (Boom-turntable)

1шт.

13

S955142

BOOM

"E" BOOM, main

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight)

2шт.

15

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

2шт.

16

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8"

2шт.

17

S511922

BUSHING

2шт.

18

S87319

PIN

clevis - 3/4" x 5.266" grip length

1шт.

19

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.
