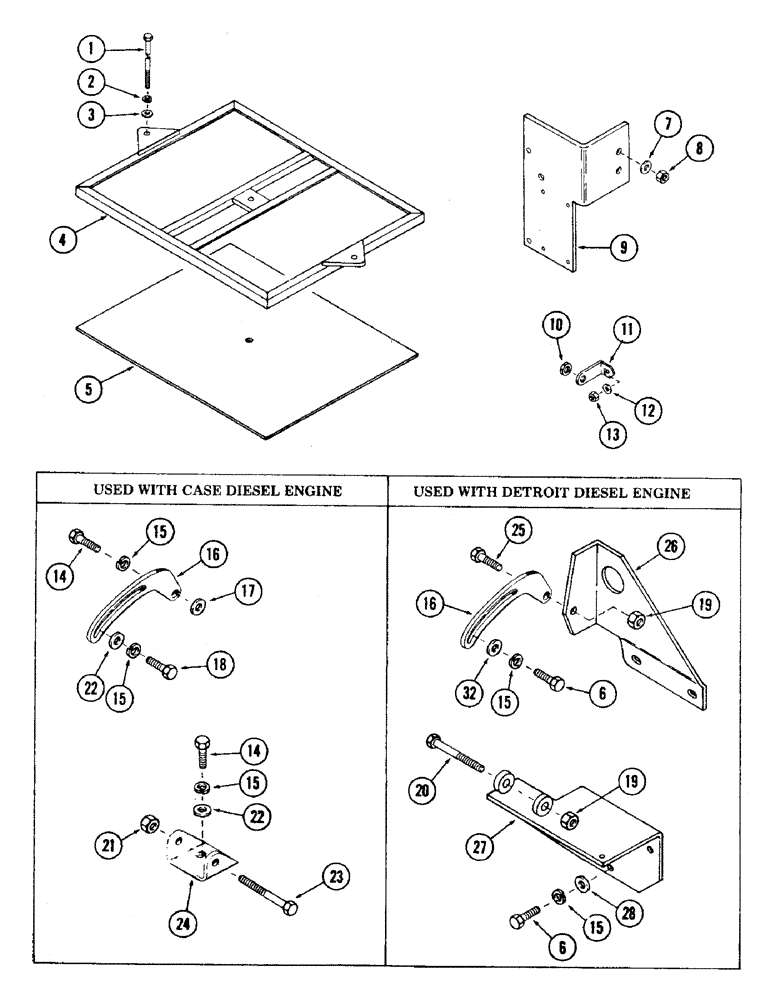

Запчасти Case 35 (220) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE (55) - ELECTRICAL SYSTEMS

1

113-2446

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

3шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

S95569

WASHER

- flat 1/2"

3шт.

4

S511694

BATTERY

BRACKET - battery hold down

1шт.

5

S235290

GASKET

PAD - rubber (Under battery)

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

195-103

WASHER,5/16"

- flat 3/8"

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - self locking 3/8"

2шт.

9

S510380

BRACKET

- relay mounting

1шт.

10

S64752

NUT

- (Mounts, Serial Range: horn-bracket)

1шт.

11

S203190

BRACKET

- horn mounting

1шт.

12

195-102

WASHER,1/4"

- flat 1/4"

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - lock 1/4" NC (Bracket to unit)

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

16

S200898

STRAP

BRACKET - alternator adjusting

1шт.

17

S112972

SPACER

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC

2шт.

20

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

21

131-463

NUT,3/8"-16

NUT - lock 3/8" NC

1шт.

22

195-525

WASHER,3/8", SAE

- flat 7/16"

3шт.

23

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

24

A160391

BRACKET

- alternator mounting

1шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

26

S38428

BRACKET

- alternator adjusting mounting - (Mounts to engine with existing hardware)

1шт.

27

S209833

BRACKET

- alternator mounting

1шт.

28

195-104

WASHER,3/8"

- flat 7/16"

3шт.
