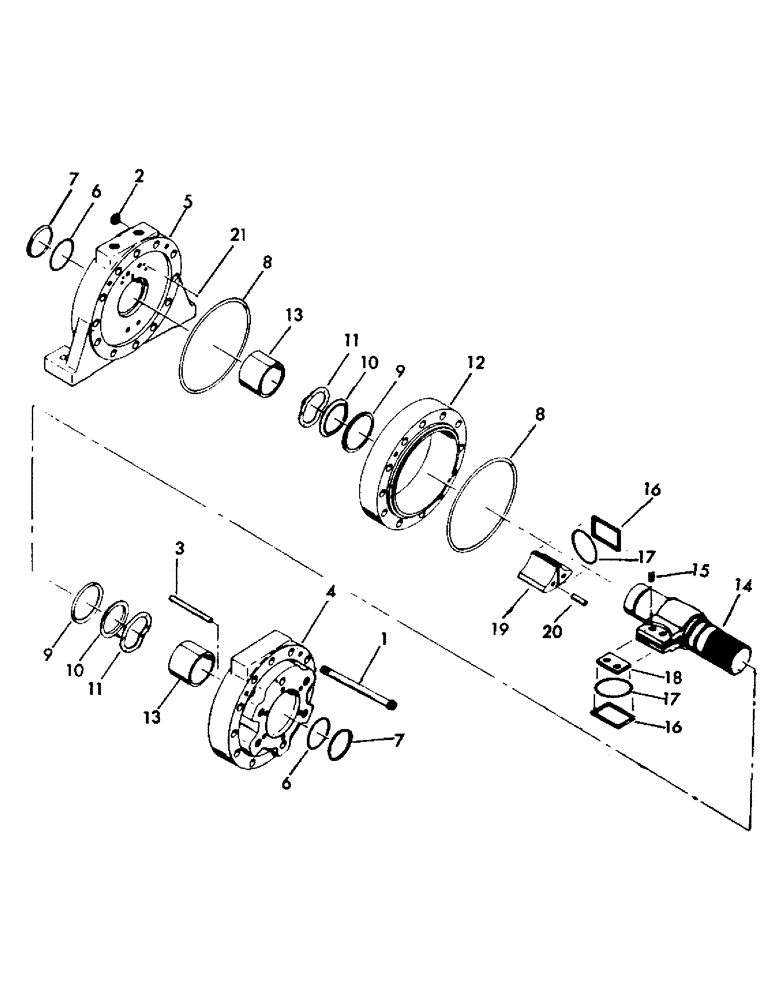

Запчасти Case 30YM (078) - PULPWOOD CLAM ACTUATOR, HOUDAILLE #410000LSB (18) - ATTACHMENT ACCESSORIES

33583

ACTUATOR, (Consists of items 1-21)

1шт.

1

2056

CPSW, 3/8 x 4-3/4 NC Gr 5

12шт.

2

4203

NUT

3/8 NC

12шт.

3

12368

SELECTOR

PIN, dowel

1шт.

4

12334

SHAFT SEAL

END, prted

1шт.

5

12333

BRACKET

END, unported

1шт.

6

6313

TUBE

"O" RING - 1-39/64 ID x 1-7/8 OD

2шт.

7

12392

INSULATOR

SEAL, shaft

2шт.

8

5751

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1.25", Gr 5

"O" RING, 4-47/64 ID x 4-15/16 OD

2шт.

9

12393

BUSHING

SEAL, shaft

2шт.

10

12394

BOOM

RING

2шт.

11

12395

BOOM

SPRING, wave

2шт.

12

12367

SHAFT SEAL

RESERVOIR

1шт.

13

12335

SEALING RING COLLAR

BUSHING

2шт.

14

NLS

NO LONGER SERVICED

SHAFT, wing

1шт.

15

12337

STUD

2шт.

16

BER12338

SHAFT SEAL

SEAL, vane

2шт.

17

5723

"O" RING, 1-39/64 ID x 1-13/16 OD

2шт.

18

12364

SPACER

1шт.

19

12365

SELECTOR

ABUTMENT

1шт.

20

12366

SHAFT SEAL

PIN, dowel

4шт.

21

12397

SPACER

BALL

2шт.

12427

KIT, seal overhaul (Consists of items 6 thru 9, 16 thru 18 & 21)

1шт.
