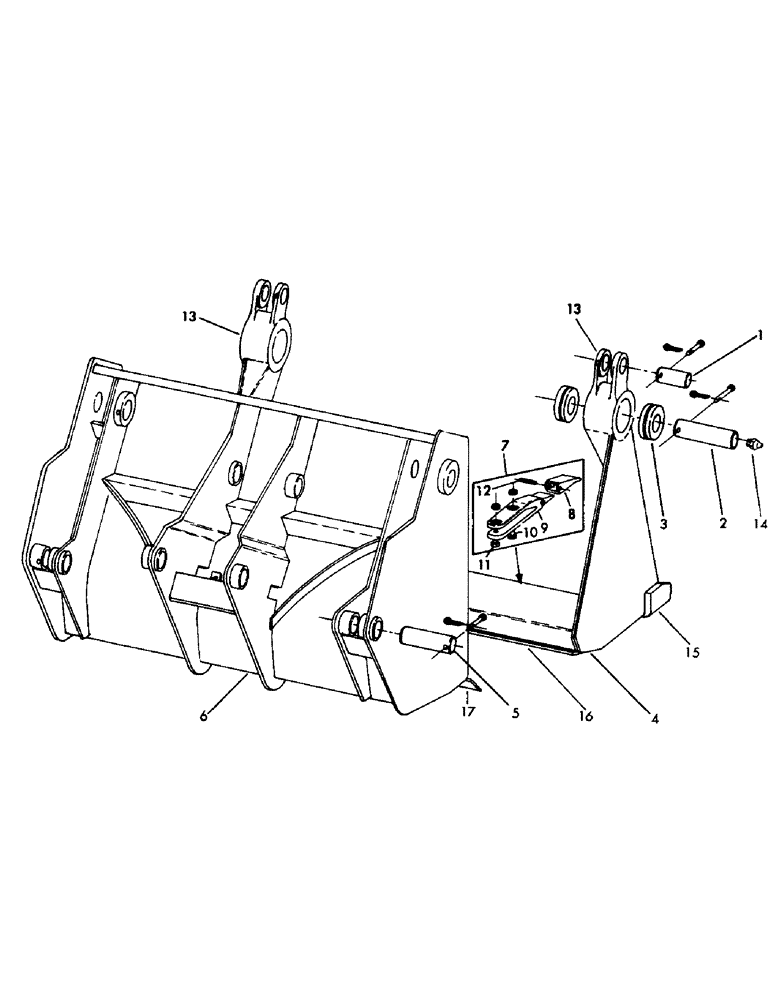

Запчасти Case 30YM (072) - 4-IN-1 (WITH TEETH), 54063 (INCLUDES HYDRAULICS - SEE PAGE 94) (18) - ATTACHMENT ACCESSORIES

1

204122

RING

PIN, Serial Range: clam-cylinder

2шт.

10784

CONNECTOR, ELEC

PIN, clevis - 3/8" x 3.016" grip length

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.

2

204178

BRAKE CALIPER

PIN, clam to blade - (Includes item 14)

2шт.

10786

TAB SPRING

PIN, clevis - 3/8" x 3.516" grip length

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.

3

23904

SWITCH

BUSHING

4шт.

4

54346

CLAM ASSEMBLY - (Includes items 3, 13, 15 & 16)

1шт.

5

67267

PIN, cylinder base

2шт.

10783

PIN, clevis - 3/8" x 2.766" grip length

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.

6

950944

BLADE, assembly - (Includes item 17)

1шт.

7

25674

TOOTH, bucket - (Consists of items 13 thru 17)

6шт.

8

25677M1

TIP, replaceable

6шт.

9

25676

SHANK, tooth

6шт.

10

15676

BOLT

CPSW - 1/2" x 2-1/2" NC

6шт.

11

15677

CPSW - 1/2" x 2-3/4" NC

6шт.

12

7892

SHIM

PIN, roll

6шт.

13

34847

RING

EAR, clam hinge - (Includes item 3)

2шт.

*14

NLS

NO LONGER SERVICED

FITTING, grease - 1/8" NPT (Straight)

2шт.

*15

204121

SPACER

EDGE, cutting

1шт.

*16

67217

KNIFE

PLATE, compaction

1шт.

*17

67234

SHIELD

EDGE, cutting

1шт.
