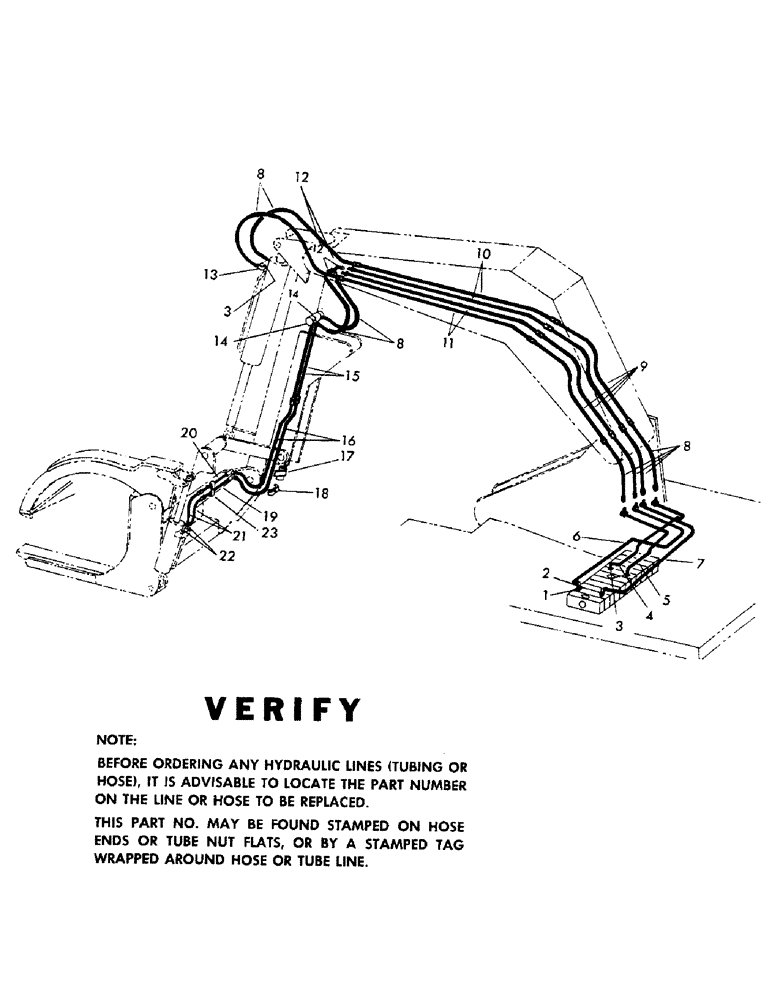

Запчасти Case 30YM (098) - LOG GRAPPLE HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
7973
CONNECTOR, straight - 1-1/16 thd x 1-5/16 tube
2шт.
6065
O-RING
"O" RING, 59/64 ID x 1-5/32 OD
2шт.
2
10361
BRACKET
ELBOW, 90 degrees swivel 1-5/16 NF male x female
2шт.
3
7968
HYDRAULIC HOSE
CONNECTOR, straight 1-1/16 thd x 1-1/16 tube
4шт.
6065
O-RING
"O" RING, 59/64 ID x 1-5/32 OD
4шт.
4
201826M1
LINE, hydraulic
1шт.
201826M2
LINE, hydraulic
1шт.
*
206601
LINE, hydraulic
1шт.
5
201702M1
LINE, hydraulic
1шт.
201702M2
LINE, hydraulic
1шт.
*
206600
LINE, hydraulic
1шт.
6
33599M1
LINE, hydraulic (Used on crawler units)
1шт.
*
33599M2
LINE, hydraulic (Used on crawler units)
1шт.
33600M1
LINE, hydraulic (Used on carrier units)
1шт.
33600M2
LINE, hydraulic (Used on carrier units)
1шт.
7
33597
LINE, hydraulic (used on crawler units)
1шт.
*
33597M1
LINE, hydraulic (Used on crawler units)
1шт.
33598
LINE, hydraulic (Used on crawler units)
1шт.
*
33598M1
LINE, hydraulic (Used on carrier units)
1шт.
*8
15468
BUSHING
HOSE, high pressure 3/4 ID x 28" w/female anf fitting
8шт.
9
201678
WHEEL
LINE, hydraulic
4шт.
10
201679
LINE, hydraulic
2шт.
11
202311
LINE, hydraulic
2шт.
12
1958432C1
ANCHOR
ELBOW, 45 degrees swivel 1-5/16 NF male & female
2шт.
13
10359
TUBE ASSY.
ELBOW, 90 degrees swivel - 1-1/16 NF male & female
2шт.
14
202761
SWIVEL, double
1шт.
15
NLS
NO LONGER SERVICED
LINE, hydraulic-tool boom
2шт.
16
202755
HOSE, high pressure 1/2 ID x 29" w/spring guard
2шт.
+28462
HOSE, 1/2 ID - HP (Bulk), 36"
2шт.
+11093
COUPLING, 7/8 female
4шт.
+8958
GUARD, spring
2шт.
17
202762
PROTECTOR, hose
1шт.
4222
HEX NUT - 3/8 NC
1шт.
4397
LOCKWASHER - 3/8
1шт.
18
45173
HOUSING
CLAMP
1шт.
19
33554
LINE, hydraulic
1шт.
20
33553
GASKET
LINE, hydraulic
1шт.
21
11226
HOSE, 3/8 Id x 20 w/female anf fittings
4шт.
22
9490
SEAL
ELBOW, 45 degrees swivel 3/4 NF male & female
4шт.
23
45187
SEAT CUSHION
CLAMP, tube
2шт.
4222
NUT - 3/8 NC
3шт.
4397
LOCKWASHER - 3/8
3шт.
