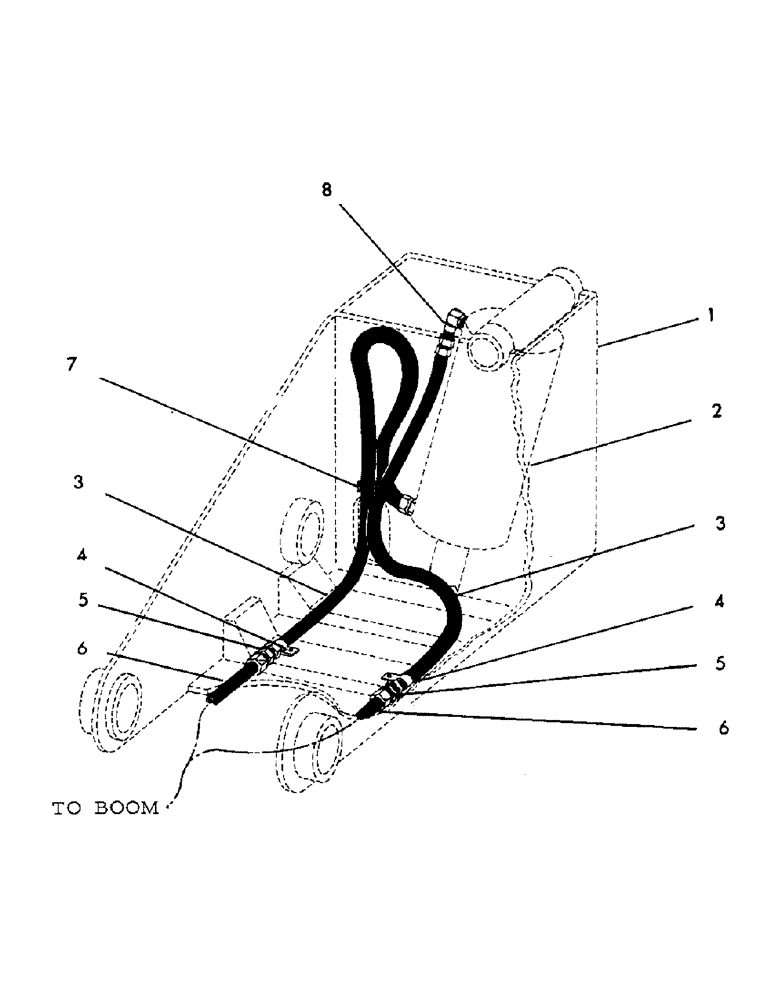

Запчасти Case 30YM (095) - WRIST-O-TWIST HYDRAULICS (07) - HYDRAULIC SYSTEM

1

FRAME

1шт.

2

37583

CYLINDER (See Figure 075 for breakdown)

1шт.

3

11230

HOSE, 3/8 ID x 56" lg

2шт.

4

45219

CLAMP, hose

2шт.

2402

LAMP

CPSW - 3/8 x 1-1/4 NC Gr 5

2шт.

4397

LOCKWASHER - 3/8

2шт.

4222

NUT - 3/8 NC

2шт.

5

101334

BRACKET

CONNECTOR

2шт.

6

11236

HOSE, jumper 3/8 x 31"

2шт.

7

45173

HOUSING

CLAMP, hose

1шт.

75792

COVER

COMPRESSION RING

2шт.

2403

LAMP

BOLT - 3/8 x 1-1/2 NC Gr 5

1шт.

4397

LOCKWASHER - 3/8

1шт.

4222

NUT - 3/8 NC

1шт.

8

10357

BRACKET

ELBOW, 90 degrees swivels

2шт.
