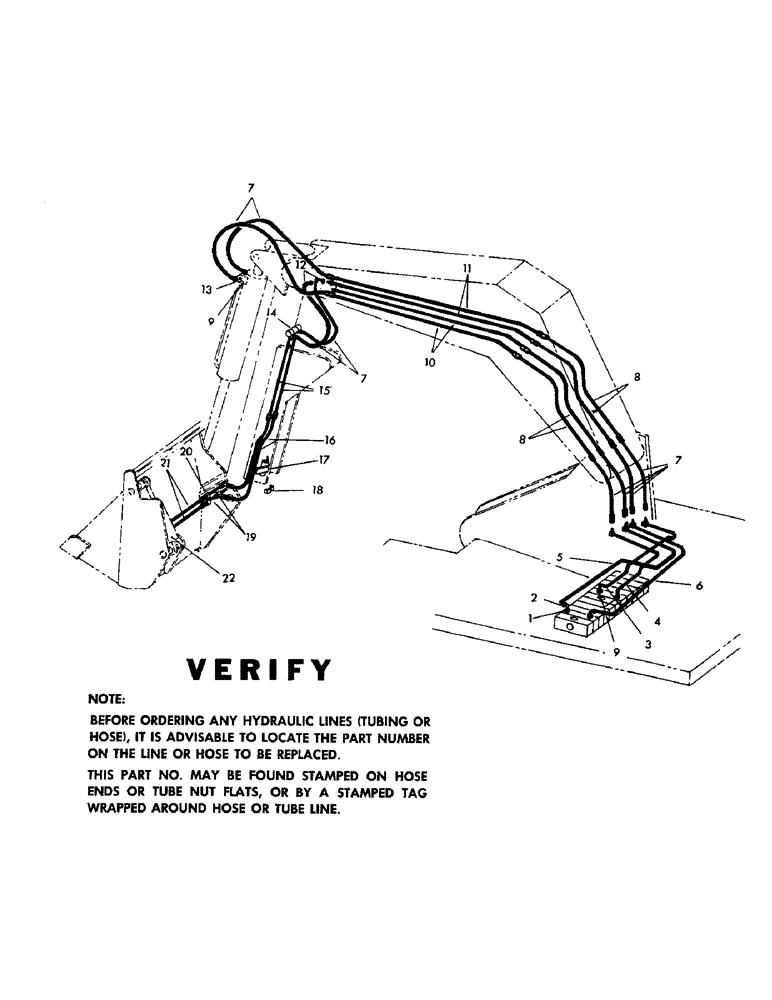

Запчасти Case 30YM (094) - 4-IN-1 HYDRAULICS (07) - HYDRAULIC SYSTEM

1

7973

CONNECTOR, straight, 1-1/16 NF x 1-5/16 NF

2шт.

6065

O-RING

"O" RING, 59/64 ID x 1-5/32 OD

2шт.

2

10361

BRACKET

ELBOW, 90 degrees swivel 1-5/16 NF male x female

2шт.

3

201826M1

LINE, hydraulic

1шт.

201826M2

LINE, hydraulic

1шт.

206601

LINE, hydraulic

1шт.

4

201702M1

LINE, hydraulic

1шт.

201702M2

LINE, hydraulic

1шт.

206600

LINE, hydraulic

1шт.

5

33599M2

LINE, hydraulic (Used on crawler units)

1шт.

33600M2

LINE, hydraulic (Used on carrier units)

1шт.

6

33697M1

LINE, hydraulic (Used on crawler units)

1шт.

33678M1

LINE, hydraulic (Used on carrier units)

1шт.

7

15468

BUSHING

HOSE, high pressure

8шт.

8

201678

WHEEL

LINE, hydraulic

4шт.

9

7968

HYDRAULIC HOSE

CONNECTOR, straight 1-1/16 NF x 1-1/16NF

4шт.

10

202311

LINE, hydraulic

2шт.

11

201679

LINE, hydraulic

2шт.

12

1958432C1

ANCHOR

ELBOW, 45 degrees swivel 1-5/16 NF male x female

2шт.

13

10359

TUBE ASSY.

ELBOW, 90 degrees swivel 1-1/16 NF male x female

2шт.

14

202761

SWIVEL, double (Breakdown Figure 081)

1шт.

15

33588

ELECTRICAL WIRE

LINE, hydraulic

2шт.

16

202754

HOSE, high pressure 4- IN-1 HYDRAULICS

2шт.

17

202762

PROTECTOR, hose 4- IN-1 HYDRAULICS

1шт.

4222

HEX NUT - 3/8 NC 4- IN-1 HYDRAULICS

1шт.

4397

LOCKWASHER - 3/8 4- IN-1 HYDRAULICS

1шт.

18

45173

HOUSING

CLAMP, hydraulic line 4- IN-1

1шт.

*19

204960

LINE, hydraulic (Used on units w/serial nos. 1 thru 101) 4- IN-1

2шт.

208457

LINE, hydraulic (Used on units w/serial nos. 102 & up) 4- IN-1

2шт.

20

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

CLAMP 4- IN-1 HYDRAULICS,Brake Rod

2шт.

4222

NUT - 3/8 NC 4- IN-1 HYDRAULICS

2шт.

4397

LOCKWASHER - 3/8 4- IN-1 HYDRAULICS

2шт.

21

11226

HOSE, high pressure 4- IN-1 HYDRAULICS

4шт.

22

31431M2

CYLINDER, 4-in-1 (Breakdown Figure 079) HYDRAULICS

2шт.
