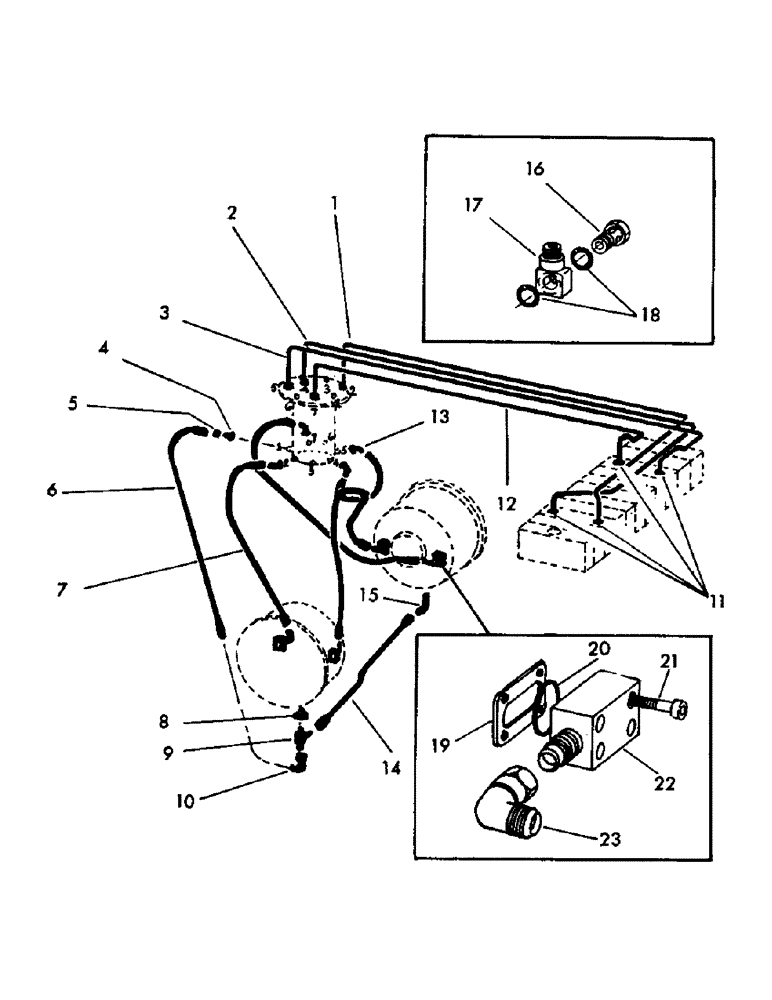

Запчасти Case 30YM (092) - 30 Y CRAWLER HYDRAULICS WITH 7 PORT SWIVEL (07) - HYDRAULIC SYSTEM

1

201980M1

LINE, hydraulic (To swivel port #2)

1шт.

2

201979M1

LINE, hydraulic (To swivel port #4)

1шт.

3

33768

TIGHTENER

LINE, hydraulic (To swivel port #5)

1шт.

4

101833

REDUCER, Serial Range: 3/4-1/2

1шт.

5

6277

O-RING

NUT, tube - 3/4 tube

1шт.

6

11230

HOSE, high pressure 3/8 ID x 28"

1шт.

7

15468

BUSHING

HOSE, high pressure 3/4 x 28"

4шт.

8

7772

BUSHING, 1/2 NPT x 3/8 tube

1шт.

9

60421

TEE, 3/8 male x 3/4 male x 3/4 male

1шт.

10

10357

BRACKET

ELBOW, 90 degrees 3/4 male x 3/4 female

1шт.

11

7968

HYDRAULIC HOSE

ADAPTER, straight 1-1/16 NF x 3/4 tube

4шт.

6065

O-RING

"O" RING, 49/64 ID x 1-5/32 OD

1шт.

12

33298

WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk

LINE, hydraulic (To swivel port #7)

1шт.

13

1958432C1

ANCHOR

ELBOW, 45 degrees 1-1/16 NF male x female

4шт.

14

8657

NUT

HOSE, high pressure 3/8 ID x 34"

1шт.

15

7731

HARNESS

ELBOW, 90 degrees 1/2 NPT male x 3/4 NF male

1шт.

16

#201056

ADAPTER

4шт.

17

#204727

JOINT, swivel

4шт.

18

#5811

"O" RING, 1-15/64 ID

8шт.

*19

72553

SPACER, 1-23/32 ID X 1-15/16 OD

4шт.

*20

6077

ELEC CONNECTOR

"O" ring - 1-23/32 ID X 1-61/64 OD

4шт.

*21

72551

IGNITION SWITCH

CPSW, french socket head - 1-23/32 ID x 1-15/16 OD

16шт.

*22

206083M1

BLOCK, manifold

4шт.

*23

10359

TUBE ASSY.

ELBOW, 90 degrees - 3/4 NF male x 3/4 NF female

4шт.
