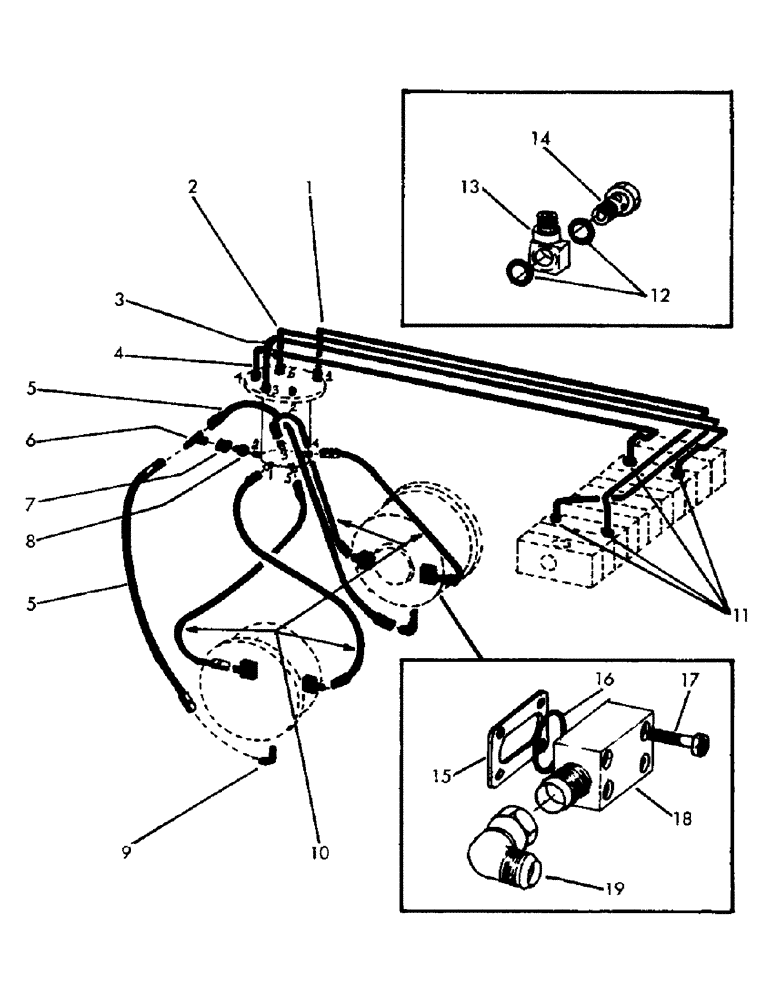

Запчасти Case 30YM (087) - 30 Y CRAWLER HYDRAULICS WITH 5 PORT SWIVEL (07) - HYDRAULIC SYSTEM

1

201980M1

LINE, hydraulic - outside rear

1шт.

2

201979M1

LINE, hydraulic - outside front

1шт.

3

33298

WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk

LINE, hydraulic - inside front

1шт.

4

33265M1

LINE, hydraulic - inside rear

1шт.

*5

11226

HOSE, high pressure

2шт.

6

63597

TEE, swivel 3/4 male x male x female

1шт.

7

6277

O-RING

NUT, tube 3/4

1шт.

8

101833

REDUCER, 3/4 x 3/8 tube

1шт.

9

7731

HARNESS

ELBOW, 90 degree 1/2 NPT male x 3/4 NF male

2шт.

10

15468

BUSHING

HOSE, high pressure, 3/4 x 28" lg

4шт.

11

7968

HYDRAULIC HOSE

ADAPTER, straight, 1-1/16 NF x 3/4 tube

4шт.

6065

O-RING

"O" RING, 59/64 ID x 1-5/32 OD

4шт.

12

#5811

"O" RING, 15/64 ID x 1-1/2 OD

8шт.

13

#204727

JOINT, swivel

4шт.

14

#201056

ADAPTER

4шт.

15

72553

SPACER - 1-23/32 ID x 1-15/16 OD

4шт.

16

6077

ELEC CONNECTOR

"O" RING

4шт.

17

72551

IGNITION SWITCH

CPSW, french socket head, 1-23/32 ID x 1-15/16 OD

16шт.

*18

206083M1

BLOCK, manifold

4шт.

19

10359

TUBE ASSY.

ELBOW, 90 degrees - 3/4 NF male x 3/4 female

4шт.
