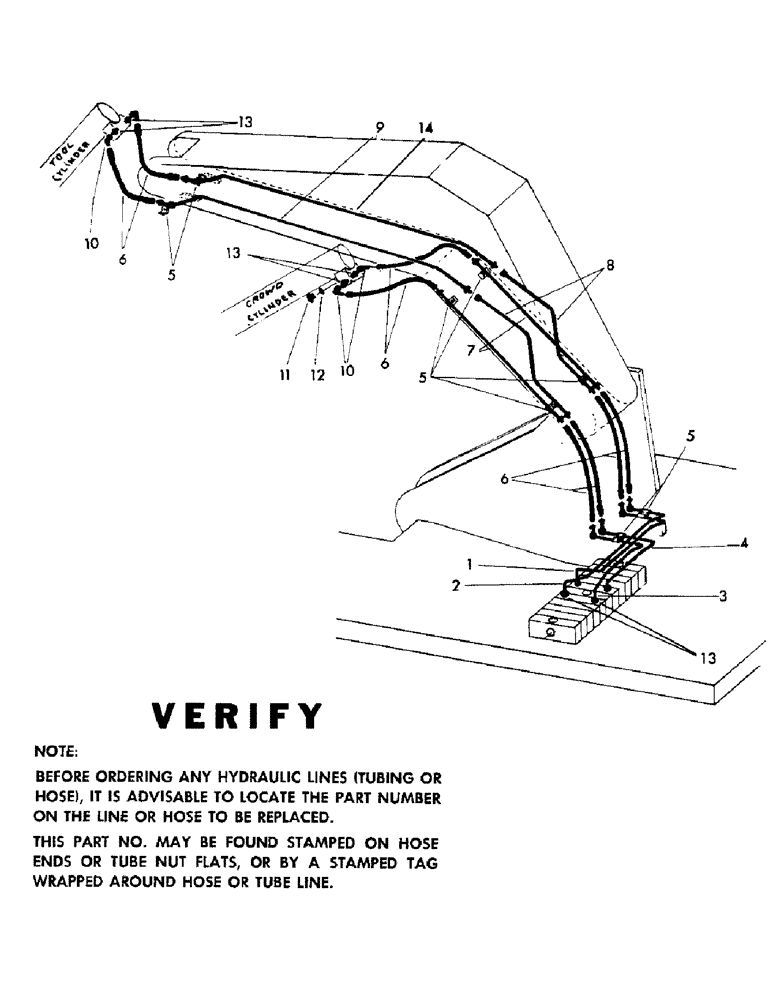

Запчасти Case 30YM (086) - TOOL AND CROWD CYLINDER LINES (07) - HYDRAULIC SYSTEM

1

201826M1

LINE, hydraulic

1шт.

201826M2

LINE, hydraulic

1шт.

*

206601

LINE, hydraulic

1шт.

2

201746M1

LINE, hydraulic

1шт.

*

201746M2

LINE, hydraulic

1шт.

3

201703M1

LINE, hydraulic

1шт.

201703M2

LINE, hydraulic

1шт.

4

201702M1

LINE, hydraulic

1шт.

201702M2

LINE, hydraulic

1шт.

*

206600

LINE, hydraulic

1шт.

*5

45173

HOUSING

CLAMP, tube

8шт.

2405

FLANGED BEARING

CPSW - 3/8 x 2 NC Gr 5

2шт.

4397

LOCKWASHER - 3/8

8шт.

4222

NUT - 3/8 NC

8шт.

6

15468

BUSHING

HOSE, 3/4 ID x 28 double female

8шт.

7

201680

SPRING

LINE, hyd - crowd cyl

2шт.

8

201678

WHEEL

LINE, hyd - main boom

2шт.

9

201679

LINE, hyd - main boom tool - LH

1шт.

10

10359

TUBE ASSY.

ELBOW, 90 degrees swivel, 1-1/16 male x female

4шт.

11

8983

SCRAPER

PLUG, 3/4

1шт.

63679

WASHER

PLUG, 3/4 w/hole for adapting gauge

1шт.

12

6065

O-RING

"O" RING, 59/64 ID x 1-5/32 OD

1шт.

13

7968

HYDRAULIC HOSE

CONNECTOR, 1-1/16 thd x 1-1/16 tube

8шт.

6065

O-RING

"O" RING, 59/64 ID x 1-5/32 OD

1шт.

14

202311

LINE, hyd - main boom tool - RH

1шт.
