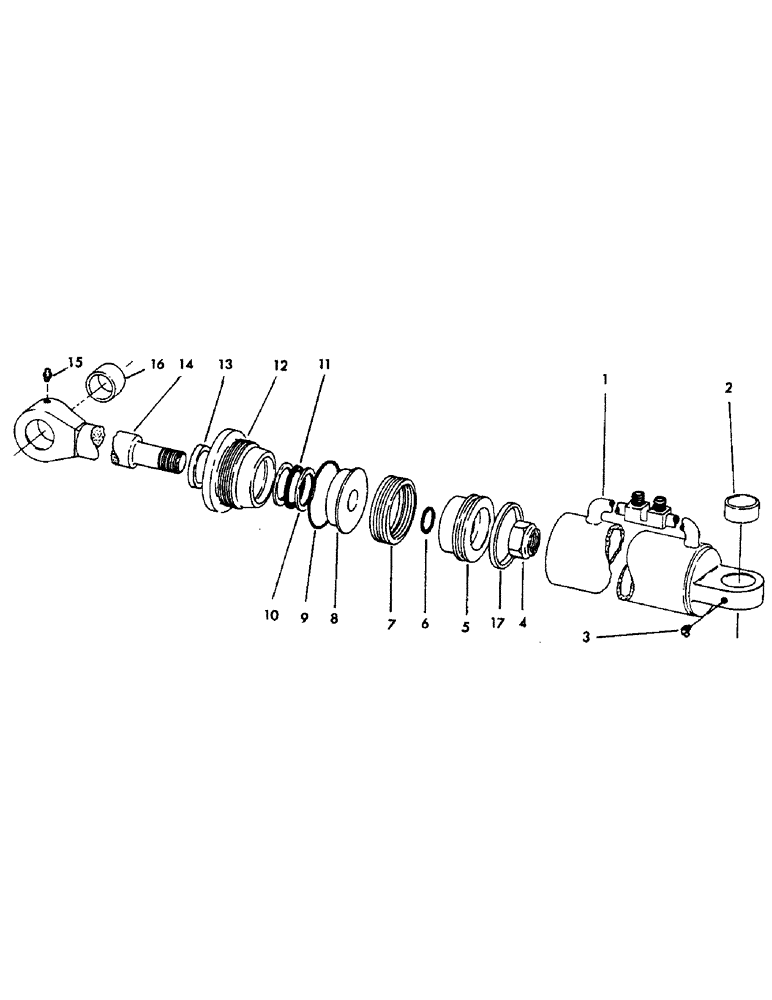

Запчасти Case 30YM (073) - YUMBO 4-IN-1 CYLINDER, 2-3/4 ID X 10.50 STROKE (07) - HYDRAULIC SYSTEM

31431M2

CYLINDER, 4-in-1 (Consists of items 1 thru 17)

2шт.

1

26750M1

TUBE & PIPE ASSY

1шт.

2

47225

SHIM

BUSHING

1шт.

3

49793

GUARD

FITTING, grease

1шт.

4

8268801

SPARE PART

nylon stop 1" NF

1шт.

5

60192

PISTON - w/"O" ring seat

1шт.

6

5807

O-RING

"O" RING, 63/64 ID x 1-1/4 OD

1шт.

7

27161

ARM

"V" RING, cup assembly

1шт.

8

60194

PISTON - half

1шт.

9

6321

"O" RING, 2-39/64 ID x 2-7/8 OD

1шт.

10

*6921

WASHER, leather back up

2шт.

11

6165

HALF-COUPLING

"O" RING

1шт.

12

46823

LEVER

HEAD, cylinder

1шт.

13

46869

RING, wiper

1шт.

14

26749

ROD, piston (Includes item 16)

1шт.

15

46960

FITTING, grease

1шт.

16

46820

BUSHING

1шт.

17

48034

SPACER

RING, wear

1шт.
