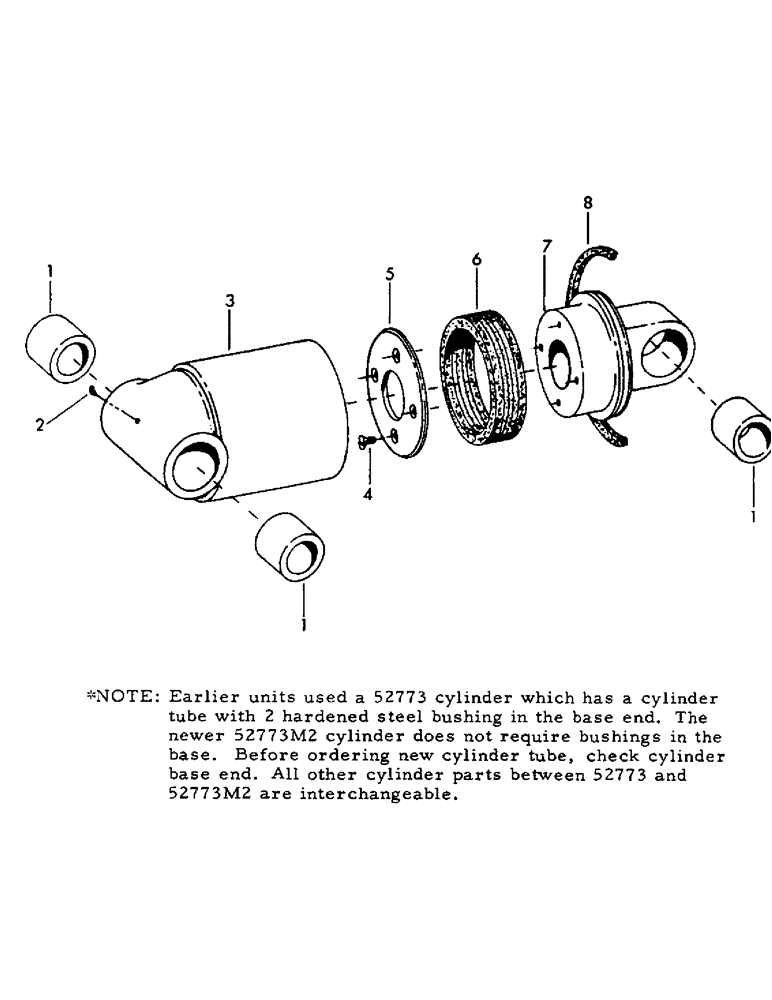

Запчасти Case 30YM (066) - LEVELER CYLINDER, 6-1/2" ID X 4.20" STROKE (07) - HYDRAULIC SYSTEM

52773M2

CYLINDER, leveler - (Consists of 1 of item 1 and items 2 thru 8)

2шт.

1

202130

BUSHING, hardened steel - (See note above) (Both 52773 and 52773M2 cylinders use 1 bushing at the rod end)

3шт.

2

49270

SPACER

FITTING, grease - 1/8" NPT x 90 degrees

1шт.

3

202462

TUBE, cylinder - For earlier 52773 cylinder

1шт.

203273M1

TUBE, cylinder - For later 52773M2 cylinder

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

4

16360

CPSW - 3/8" x 3/4" NC Gr 5 (Flat head)

4шт.

5

64145

SUPPORT

PLATE, piston base

1шт.

6

202459

CONNECTING LINK

"V" RING, cup assembly

1шт.

7

203271

PISTON AND ROD ASSEMBLY - (Includes 1 of item 1)

1шт.

8

64146

SPACER

RING, wiper - felt

1шт.
