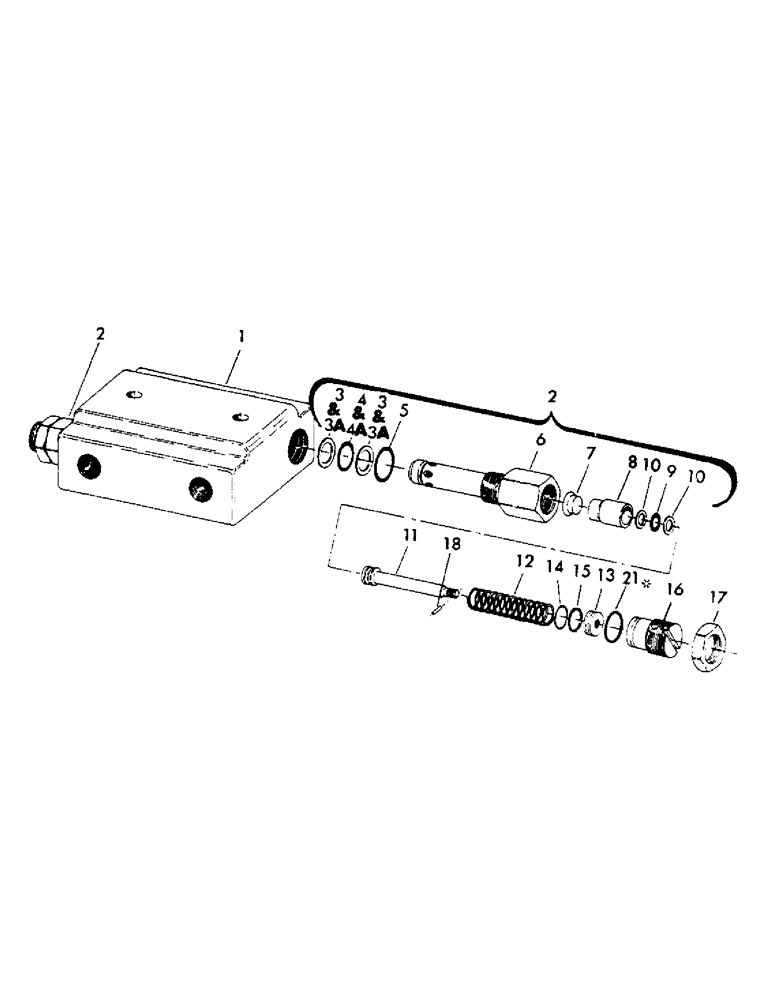

Запчасти Case 30YM (054) - SWING, INLINE, CROSSOVER RELIEF VALVE (07) - HYDRAULIC SYSTEM

37296M1

VALVE, crossover inline relief (Consists of items 1 and 2)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

1

73967

CLAMP

HOUSING, valve

1шт.

2

73968M1

CARTRIDGE, relief - complete (Consists of items 3 thru 18 and item 20)

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

3

78693

RING, back up - Used with cartridge on units with serial number 1 thru 477) ITEMS 3 THRU 18 AND 21 ARE FOR

2шт.

3a

79384

RING, back up - Used with cartridge on units with serial number 478-up (Included with item 20) 3 THRU 18 AND 21 ARE FOR 1

4шт.

4

6576

CYLINDER END CAP

"O" RING - 55/64" ID x 1-1/8" OD - Used with all cartridges, on units with serial number 1 thru 477 ITEMS 3 THRU 18 AND 21 ARE FOR

1шт.

4a

6483

"O" RING - 15/16" ID x 1-1/8" OD - Used with cartridges on units with serial number 478-up (Included with item 20) 3 THRU 18 AND 21 ARE FOR 1

1шт.

6579

SPARE PART

"O" RING, gasket - 1-1/16" ID x 1-5/16" OD (Included with item 20) Use as replacement on ALL crossover relief valves. 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL, cartridge - (Order item 2 or 20) 3 THRU 18 AND 21 ARE FOR 1

1шт.

7

74572

SNUBBER ITEMS 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

8

13854

O-RING

SEAT, floating ITEMS 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

9

6474

"O" RING (Seal) - .362" ID x 562" OD - (Included with item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

10

80306

SCREW

RING, back up - (Included with item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

11

NSS

NOT SOLD SEPARAT

PLUNGER, displacement - (Order item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING, plunger - (Order item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

13

NSS

NOT SOLD SEPARAT

NUT, stop - (Order item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

14

6478

"O" RING (Seal) - .612" ID x 812" OD - (Included with item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

15

70694

RING, back up - (Included with item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW, adjusting - (ORDER ITEM 2) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

17

NSS

NOT SOLD SEPARAT

NUT, locking - (Order item 2) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

18

NSS

NOT SOLD SEPARAT

PIN, spiral - (Order item 19) 3 THRU 18 AND 21 ARE FOR 1 CARTRIDGE

1шт.

21

6576

CYLINDER END CAP

"O" RING, adjusting screw - fits all cartridges 3 THRU 18 AND 21 ARE FOR 1

1шт.

19

79437

KIT, cartridge (Consists of items 9 thru 15 and 18 assembled) fits all cartridges REPAIR

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

20

79438

KIT, cartridge (Consists of items 3A, 4A, 5 and 6) fits all cartridges REPAIR

1шт.

Change of part number, quantity, or description, at the last revision

1шт.
